RF electronic filters
Frequency: 18 GHz
Board level Ceramic Based Thick Film RF Filters Planar X Series is part of an overarching initiative by Smiths Interconnect that entails the creation of best-in-class planar RF filter ...
Frequency: 400 Hz
Voltage: 250 V
Primary current: 16 A
RF filters which provide high attenuation in both differential and common mode. Their extended low frequency performance makes them particularly suitable for industrial frequency converters, motor drives ...
Frequency: 470 MHz - 5,950 MHz
... for communication between wireless devices. A filter has functions to pick up only the signals in this required frequency, and eliminate the signals in the frequencies which are not required. Our filters ...
Frequency: 9.5 MHz - 77 MHz
Features • low insertion loss, 1.5 dB max. • good selectivity, 1.76 typ. 20 dB/3dB BW ratio • rugged shielded case Applications • high rejection applications • image rejection • IF signal processing
Frequency: 950 MHz - 5,990 MHz
Features • Extremely wide passband, 950-2200 MHz • Small size 0805(2.0 x 1.25 mm ) • Temperature stable • LTCC construction Applications • Wireless communication • Harmonic Rejection • Transmitters / receivers
Frequency: 950 MHz - 8,750 MHz
Features • Wideband, 950-1970 MHz • Low loss, 1.9 dB typ. • Small size, 1206 (3.2mm x 1.6mm) • Temperature stable • LTCC construction Applications • CATV/MOCA • Harmonic Rejection • Transmitters / receivers
Frequency: 824 MHz - 5,900 MHz
Pasternack RF bandpass filters (BPF) are tractable coaxial elements that permit particular frequencies to move within a specific distance and declining frequencies (attenuation) beyond that range. Bandpass ...
Frequency: 30 MHz - 2,500 MHz
With these Pasternack RF highpass filters (HPF), high frequency signals are able to pass within a certain range and attenuate (reject) frequencies outside that given range, which is up to 2.5 GHz in this ...
Frequency: 3 GHz
The RF lowpass filters, which are manufactured by Pastersnack, are passive coaxial components that allow passing of low frequency signals within a given range and reject frequencies outside that particular ...
Frequency: 160 MHz
RRF-160-NFF 160MHz Band Pass Filter PolyPhasers weatherized band pass filter surge protector is designed for 160 MHz railroad wayside applications. Specifically designed for rail PTC systems the RRF-160-NFF ...
Frequency: 320 MHz - 2,500 MHz
... for example in cordless telephones and mobile transceivers there is a need of high selectivity RF filter circuits. We have developed a series of helix filters providing an improved ...
Frequency: 400 Hz
Voltage: 250 V
Primary current: 1 A - 10 A
Rated currents up to 10 A Faston connection Optional PCB through hole connection Good HF coupling to the equipment housing Optional medical versions (B type) Operating frequency : DC to 400 Hz Voltage : ≤ 250 V Rated current : ...
Voltage: 24 V
Primary current: 4 A
Filters of the SFK12-4S2124 series are used to suppress circuit-bound interferences in DC supply lines or DC control lines Interference pulses or interference voltages are dampened independently from their point of ...
Frequency: 118 MHz - 144 MHz
... *Input and output coupling degree: manually settable *Input/output VSWR: ≤1.5 *Input /Output impedance: 50Ω *RF Connectors: N female *RF Input Power: 200 W AMc（AM carrier） *Temperature range Operating ...
Frequency: 50 Hz - 60 Hz
Voltage: 520 V
Primary current: 8, 12, 16, 30 A
... Degree of protection IP 20 Leakage current 0 mA Advantages For enhanced requirements Single‑stage filter concept Efficient filter effect against line‑bound interference emissions ...
Frequency: 144 MHz - 470 MHz

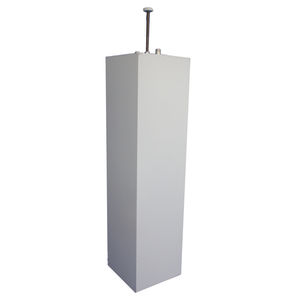

Reject Filters with 5” & 8” Cavities Horwin RF-V/Ux-x series is a reject (notch) filters based on a quarter wave 5 or 8 inches width square cavities. The use of large cavities provides ...
Frequency: 3 GHz
Coaxial Termination is mainly used to absorb the power from RF or microwave system,which could be used as antenna’s fake termination and transmitter ‘s end-user.At the mean time it also be used for multi-ports microwave ...
Frequency: 50, 60 Hz
Voltage: 0 V - 277 V
Primary current: 30, 5 A
RF power line filter Rated current 30Amps Nominal voltage 277Vac 100dB at 10MHz 100dB at 1GHz
Frequency: 480 MHz
For an exact analysis of the major radio services in Europe (including the three LTE frequencies as well as TETRA). Frequency range: (Here: filter positions) Allpass / low pass 480 MHz / TETRA / LTE800 ...
Frequency: 900, 5, 40 Hz
... as an upgrade to your current system. The filter is constructed in a gold plated copper chassis with RF gaskets to provide screening and thermal dumping for the filter PCB. The ...
