AC electronic filters

Frequency: 60, 50 Hz
Voltage: 250, 120 V
Primary current: 20, 10, 3, 6 A

Multipurpose Power Line RFI Filter for Emission Control. Offers an N = 4 (“Dbl. L”) Line to Ground impedance for common mode and an N=5 (“Dbl. Pi”) impedance for Line to Line differential mode interference. Filter ...

TDK offers a wide range of different line filters: common-mode chokes for power lines, differential-mode chokes and sine-wave chokes. Whereas the common-mode chokes are used to reduce the asymmetrical interference level ...

Suppressor modules from Murrelektronik ensure machine availability. The benefits of suppressor technology are enormous and far outweigh the measures linked with its deployment. For a small price, you can prevent malfunctions or faults ...

Frequency: 50, 60 Hz
Voltage: 0 V - 250 V
Primary current: 60 A

Characteristics PLC Blocking Filters Single Phase for Smart Meters Specially designed for Smart meters which comply with PLC G3, PRIME & CENELEC Band A technology. Designed to meet according to ...

Frequency: 10 kHz
Voltage: 600, 1,000 V
Primary current: 1 A

FL4D-Z8-302-XJ ---- one of Mornsun’s common mode inductance, which is designd for three-phase power products. After addingaFL4D-Z8-302-XJ at the input of the module, the EMC performance can be significantly optimized. FEATURES  ...

Frequency: 60, 50 Hz
Voltage: 300, 520 V
Primary current: 3 A - 20 A

• Line filter as standard, industrial and medical version • 1 stage • Filter with standard or high attenuation (HP) Unique Selling Proposition • Compact single-stage filter • Various ...

Voltage: 200 V - 690 V
Primary current: 2.5 A - 800 A

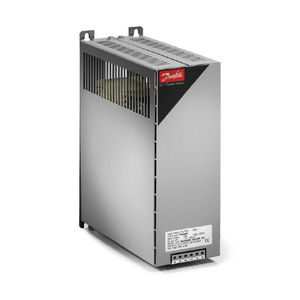

VLT® Sine-wave Filter MCC 101 • VLT® Sine-wave Filters are positioned between the AC drive and the motor to provide a sinusoidal phase-to-phase motor voltage. The filter ...

Frequency: 50 Hz - 60 Hz
Voltage: 480 V
Primary current: 3 A - 16 A

... mA Ambient temperature max. 45 °C Degree of protection IP 20 Advantages For general requirements Single‑stage filter concept Efficient filter effect against line‑bound interference emissions Increase ...

Frequency: 60, 50 Hz
Voltage: 380 V
Primary current: 15 A - 300 A

Active power filter (APF:Active power filter) with parallel connected to the grid, through real-time detecting the load harmonic and reactive component and the PWM converter technology, and harmonic and ...

Frequency: 50, 60 Hz
Voltage: 208 V - 690 V
Primary current: 50 A - 450 A

Overview Active Power Filter (APF) is a new type electronic device which is used to prevent dynamic harmonic and compensate reactive power. It can compensate the size-changing and frequency-changing ...

Frequency: 50, 60 Hz
Voltage: 480 V
Primary current: 5 A - 1,600 A

... ensure the stability, security, robust. 10. Inverters and the motor coil to reduce the wear and tear, for the inverters output filter. An EMI filter, or electromagnetic ...

Frequency: 63 Hz
Voltage: 250 V
Primary current: 1 A - 10 A

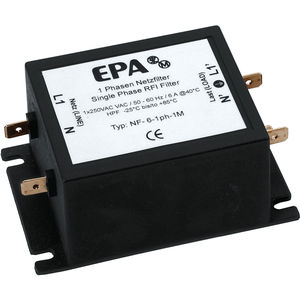

Universal Compact Filter High attenuation Low leakage current 1-stage (-1M) or 2-stage (-2M) Compact style housing Fast-on connectors UL approval

Frequency: 50 Hz
Primary current: 3 A - 1,500 A

Basic industrial level DC EMC Filter. DAQI ® EMC filters are essential devices that prevent interferences in machines and systems. They reduce the interference emissions while improving immunity from ...

Voltage: 115, 250 V
Primary current: 1 A - 60 A

Single Phase EMI Filter Features *Metal chassis mount EMI filter. *Standard conducted attenuation performance. *Compact design. *Current rating from 1A~60A. *Combine different EMC solution ...

Frequency: 60 Hz
Voltage: 600 V
Primary current: 8 A - 880 A

Rated current from 5 to 880A Nominal voltage 600 Vac Very compact size Available in Nema 1 or Nema 3R enclosure Benefits Low power loss No ventilation required Excellent performance versus frequency ...

ACT Meters International Ltd provides a wide variety of alarm troubleshooting systems for intruder and fire alarms. The products address issues such as false alarms and system breakdowns resulting out of EMI, RFI and nearby lightning. ...

... interference pulses are effectively attenuated by the EMC filters regardless of location. The EN55011 standard (limit values and measurement methods) regulates the use of EMC filters. The mains filter ...

Voltage: 24 V - 400 V

... purpose filter with single phase input is proposed in a very compact size. It can be mounted as desired or attached directly on the device through biadhesive. The RC + Varistor is a particularly interesting model because ...

Frequency: 4 kHz
Voltage: 200 V - 690 V
Primary current: 12 A - 1,500 A

DU/dt filters are used for filtering voltage increase rate and voltage peak value in motor input. With Trafox DU/dt filters, lengths up to 100–300 m can be reached, facilitating even ...

Frequency: 200 kHz
Voltage: 85 V - 528 V
Primary current: 3, 6 A

SynQor provides 3-phase AC-DC EMI filters for the Mil-COTS series converters. All EMI filters provide differential mode attenuation and common mode attenuation (model dependent) and include ...
