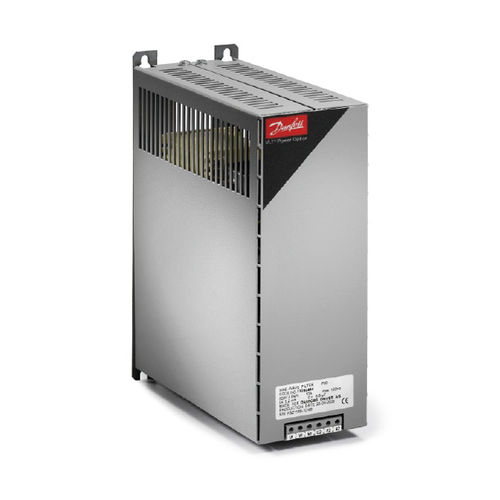

Sine wave electronic filter VLT® MCC 101

band-passactivepower

VLT® Sine-wave Filter MCC 101 • VLT® Sine-wave Filters are positioned between the AC drive and the motor to provide a sinusoidal phase-to-phase motor voltage. The filter reduces motor insulation stress, acoustic noise from the motor, and bearing currents. • Reduces motor insulation stress • Reduces acoustic noise from the motor • Reduces bearing currents (especially in large motors) • Reduces losses in the motor • Prolongs service lifetime • VLT® FC series family look • Line voltage and filter current: • 3 x 200 – 690 V, 2.5 – 800 A* • * For higher power ratings, combine multiple modules. • Enclosure ratings: • IP00 and IP20 wall-mounted enclosures rated up to 75 A (500 V) or 45 A (690 V) • IP23 floor-mounted enclosures rated 115 A (500 V) or 76 A (690 V) or more • IP54 both wall-mounted and floor-mounted enclosures rated up to 4.5 A, 10 A, 22 A (690 V)
