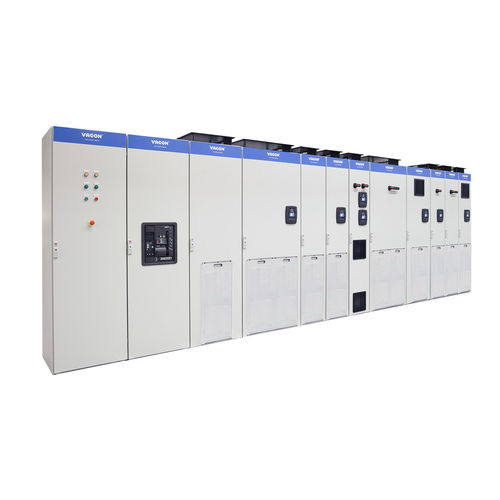

Industrial AC drive VACON® NXP System Drive

three-phasecabinetfor marine application

Complex solutions made simple The VACON® NXP System Drive is a comprehensive configured common DC bus drive line up for heavy-industry needs where round-the-clock activity is required leaving little time for maintenance. All sections are grouped depending on their functionality, making it possible to plan each installation phase according to your requirements. The engineered sections slot in alongside each other allowing you to arrange integrated transport splits to save space. Alternatively, you can add extra transport sections to speed up installation. All larger modules have slide-out mechanics for easier set-up and maintenance. The VACON NXP System Drive is built to last. Items such as busbar systems and high/low power devices are separated into individual compartments away from each other. This means that, if an issue occurs, it is compartmentalized and doesn’t cause widespread failure helping to reduce lifetime and maintenance costs. Supply voltages and power range Current ratings (main busbars) • 3 x 380-500 V...630-5000 A • 3 x 525-690 V...630-5000 A Features and benefits • Maintenance savings and optimized cash flow as modules can be delivered closer to the start of operation due to the short set-up time • Cost savings as a result of the standardized solution • Quick set-up and maintenance thanks to the modular design and pull-out features • Minimized downtime as spare parts are always stocked and readily available
