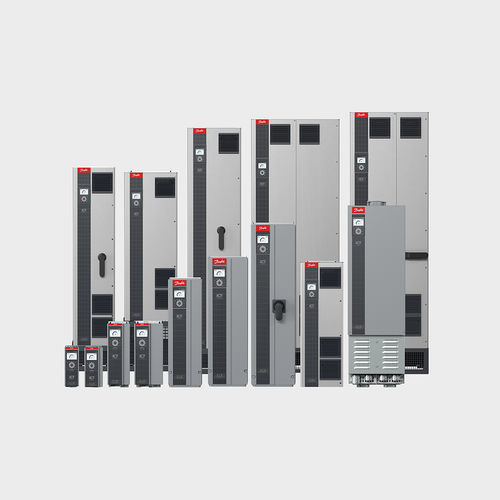

Induction variable-speed drive iC7-HVACR

permanent magnetfloor-standingwall-mounted

Overview
Whatever your system ambition, iC7-HVACR can fulfill it. iC7-HVACR is the next generation variable frequency drive (VFD) for HVAC applications, engineered to deliver reliable performance and energy-efficient control in commercial HVACR systems. The modular control platform enables flexible functional expansion and simplifies upgrades of existing installations.

ULH variant
The iC7-HVACR ULH variant is an ultra low harmonic HVAC drive that sets a new benchmark for harmonic mitigation, ensuring cleaner power and prolonged equipment life.

Supply voltage and power range
Standard drives: 3 x 380-480 V AC — 1.1 – 710 kW
Ultra low-harmonic (ULH) drives: 3 x 380-480 V AC — 22 – 160 kW

Key features

• Highly compact design saves space and reduces cooling requirements in energy-efficient HVAC systems
• Hardware-based cybersecurity with onboard crypto chip for encrypted data transfer and protection against unauthorized access
• HVACR-specific intelligence with additional sensors, analytics and connectivity options
• EMC compliance with built-in EMC filter (Categories C1, C2 and C3)
• Ultra low-harmonic (ULH) variants provide harmonic mitigation with very low THDi (< 3–5%), protecting equipment from overheating and malfunction
• Integrated dual Ethernet or RS-485 ports; supports BACnet/IP, Modbus TCP, EtherNet/IP, PROFINET RT, EtherCAT, BACnet MSTP, Modbus RTU
• Safe Torque-Off (STO) up to SIL3 / Performance Level e (PLe) as standard
• Numerous integrated sensors and calibration functions to improve control accuracy
• Integrated condition-based monitoring (CBM) for predictive maintenance and maximized uptime
• Efficient heat management using back-channel cooling to remove up to 90% of electrical-room heat losses
• Compatible with induction (IM) and permanent magnet (PM) motors
• Supports virtual models to simulate drive or converter environments for faster development and reduced risk

Applications and installation
Optimized for wall-mounted, cabinet-mounted or free-standing installation. Core component for energy-efficient HVAC systems in commercial buildings and for installations with strict power quality or harmonic limits.

Documents and resources
Available technical documents include fact sheets, selection guides, ULH fact sheets and design guides specific to the iC7-HVACR family; software tools and configurator resources are provided to configure and order product variants.

Technical specifications

• Product family: iC7-HVACR (including ULH ultra low-harmonic variants)
• Supply voltage: 3 x 380–480 V AC
• Power range (standard): 1.1 – 710 kW
• Power range (ULH): 22 – 160 kW
• Harmonic mitigation (ULH): THDi typically < 3–5%
• EMC: built-in filter for categories C1, C2 and C3
• Safety: Safe Torque-Off (STO) up to SIL3 / PLe
• Connectivity: integrated dual Ethernet or RS-485; supports BACnet/IP, Modbus TCP, EtherNet/IP, PROFINET RT, EtherCAT, BACnet MSTP, Modbus RTU
• Cooling: back-channel cooling to remove up to 90% of electrical-room heat losses
• Security: hardware-based cybersecurity with crypto chip for encrypted data transfer
• Sensors: multiple integrated sensors and sensor calibration for improved control accuracy
• Monitoring: integrated condition-based monitoring (CBM)
• Installation types: wall-mounted, cabinet-mounted, free-standing
• Industrial IoT: supports connected and secure operation via industry-standard interfaces
