Low-pass electronic filter
passiveharmonic

low-pass electronic filter
low-pass electronic filter
Add to favorites
Compare this product

Characteristics

Bandwidth
low-pass
Type
passive
Other characteristics
harmonic
Current

1,102 A

Voltage

400 V

Frequency

50 Hz

Description

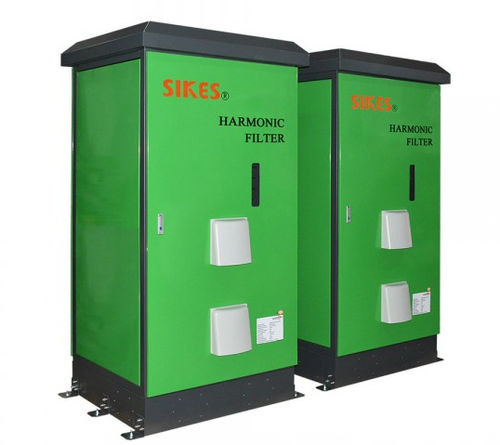

Sikes passive harmonic filter is designed for almost any kind of electronic applications with six pulse front end rectifiers . The filter can efficiently reduce the harmonic current distortion to required level. Typical application:non-linear three-phase power supplies where potential risk is high due to thermal and electrical overload caused by harmonic currents. Passive Harmonic Filter Applications: DC Fast Chargers; HVAC Installations; Fan and pump applications; Industrial automation and robotic equipment; AC and DC Motor drives & frequency inverters; Equipment with six pulse front end rectifier. Passive Harmonic Filter Product Features: Quick installation and easy commissioning design; Cost-effective passive harmonic filter; Helps to comply with international power quality standards. Technical Standard: IEC61000,IEEE 519 Passive Harmonic Filter Technical Chracteristics: Norminal operating voltage:3*380 to 500VAC±10%; Operating Frequency:50Hz(60Hz upon request); THDi<<5% (system requirements:TDHv<2% ,line voltage unbalance<1%); Power rating: 700kw; Efficiency:98% to 99% @ norminal line voltage; Overload :1.6X rated current for 1min , once per hour; Ambient temperature:-25 to +40℃; Protection:IP54; Gross weight:1341KG Net weight:1241KG Size:1250*1100*2244mm Cooling:Internal air forced; Sikes passive harmonic filer is your ideal choice except Schaffner and MTE filters .
