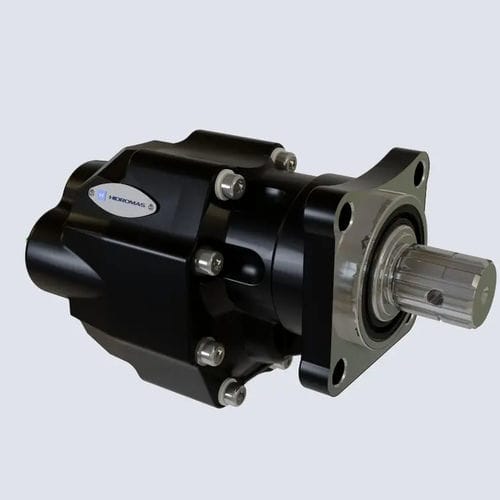

Hydraulic gear pump GPBI3008210133

hydraulically-operatedcast ironfor industrial applications

Hidromas Pumps: Designed for Performance and Reliability Hidromas pumps, R&D and production are done in-house. We are very ambitious about our pumps. A rugged, PTO-ready gear pump for mobile hydraulics. The GPBI3008210133 provides 82 cc/rev displacement in a bi-rotational design, so it runs clockwise or counter-clockwise with the same hardware. Rear G1” porting and a 4H ISO mounting face streamline plumbing in tight chassis layouts. Why it stands out • Bi-rotational flexibility: One pump for CW/CCW rotation simplifies spares and setup. • PTO-friendly shaft: 8×32×36 (DIN 5462) spline for quick, secure coupling. • Strong drivetrain: Max input shaft torque 300 Nm supports demanding duty cycles. • Clean, reliable hydraulics: Use 25 μm absolute return filtration; maintain oil to ISO 4406 class 19/16. • Built for harsh environments: ASTM B117 salt-spray tested for ≥300 hours corrosion resistance. • High-temp sealing: Dual-seal stack—NBR to 80 °C plus Viton to 220 °C—handles temperature swings. • Serviceable form factor: Rear G1” ports and compact body ease hose routing and maintenance.
