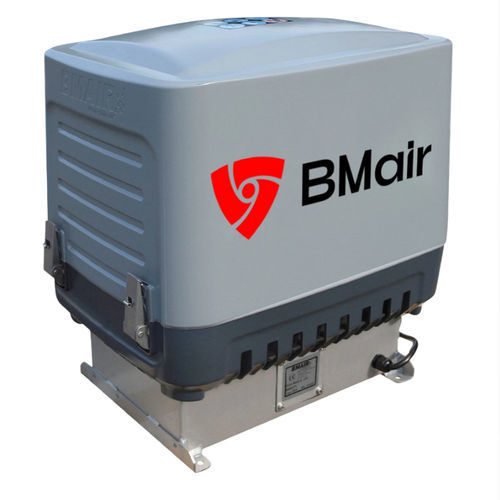

Single-flow ventilation unit MAO-3CG

with integrated filtrationhigh-efficiency

Overview
Designed for machine cabins, the BMair MAO-3CG is a compact protective ventilation unit combining a self-cleaning HEPA filter with capacity for a full 10 kg activated carbon module. Housed in a stainless steel and plastic enclosure, it is dimensioned to maximize filter contact time for efficient removal of hazardous dusts, gases and vapours while fitting confined installation spaces. The unit is intended to protect machine operators from fine dust and harmful fumes.

Key features

• Compact protective ventilation system designed for machine cabins
• Self-cleaning HEPA filter providing dust filtration from P1/G3 up to P3/H13
• Capacity to accommodate a 10 kg activated carbon filter for gas filtering
• Separate compartment for filters of harmful substances
• Multiple discharge options
• RFiD filter recognition for filter identification

BMair Connect (control & monitoring)
BMair Connect is the control and monitoring unit developed to operate with the MAO-3CG. When activated it automatically manages the system and issues alerts in case of hazards such as pressure loss or gas detection inside the cabin. The platform provides advanced online connectivity with 24/7 access to controller data via a real-time portal, enabling users to check filter life status, view graphs of key parameters including cabin pressure, access per-machine filter logs and download inspection certificates.

Technical data (table)
Weight: 24 kg without filters
Dimensions: 536 x 379 x 529 mm (LxBxH)
Air output: Nominally 40-120 m³/h
Gas filtering: supports a 10 kg active carbon filter
Dust filtering: Self-cleaning HEPA filter (P1/G3–P3/H13)
Voltage: 24/12 V
Max. power consumption: 12 or 15 A
Inclusive: Mounting material
Material: Stainless steel & plastic
Finish: Powder coated
K-Factor: 3 to 10
Hinged lid: No
Multiple discharge options: Yes
Separate compartment for filters of harmful substances: Yes
Mounting position: Horizontal
RFiD filter recognition: Yes

Technical specifications

• Weight: 24 kg without filters
• Dimensions: 536 x 379 x 529 mm (LxBxH)
• Air output: Nominally 40-120 m³/h
• Gas filtering: supports a 10 kg active carbon filter
• Dust filtering: Self-cleaning HEPA filter rated P1/G3 to P3/H13
• Voltage: 24/12 V
• Max. power consumption: 12 or 15 A
• Includes mounting material
• Material: Stainless steel and plastic
• Finish: Powder coated
• K-Factor: 3 to 10
• Hinged lid: No
• Multiple discharge options: Yes
• Separate compartment for filters of harmful substances: Yes
• Mounting position: Horizontal
• RFiD filter recognition: Yes
