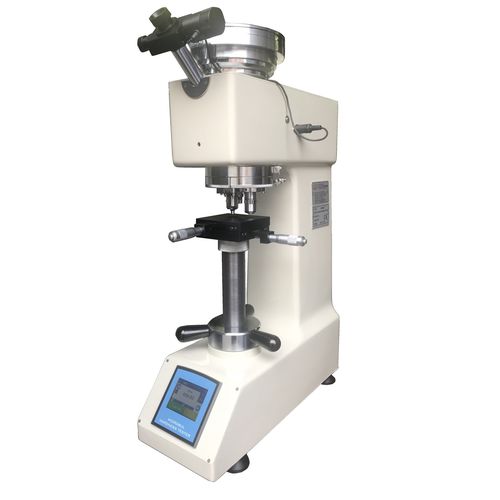

Low-load hardness tester MICROBUL-N
Vickersbenchtopautomatic

low-load hardness tester
low-load hardness tester
low-load hardness tester
Add to favorites
Compare this product

Go to the BMS BULUT MAKINA SANAYI website for more information

Characteristics

Type
Vickers
Mounting
benchtop
Other characteristics
LCD digital display, automatic, with XY positioning table, low-load
Load

0.5 kgf, 1 kgf, 3 kgf, 5 kgf, 10 kgf

Useful height

130 mm, 160 mm
(5.1 in, 6.3 in)

Weight

68 kg, 100 kg
(149.9 lb, 220.5 lb)

Description

Load selection:Manuel Test methods:Vickers & Brinell Load application:Automatic Hardness value:Automatic display manual measuring Total magnification of measuring microscope:360X (with 25X objective) 140X (with 10X objective) X-Y table dimensions (mm):100X100 X-Y table travel (mm):25 Depth of thoroat (mm):130 Power supply:AC 220V, 50Hz Machine dimensions (mm):190x750x480 Case dimensions (mm):440x590x950 Standart Accessories Eyepiece micrometer lens:1 Vickers pyramid diamond indenter:1 25×Objective:1 10 × Objective:1 HV Test block:1 X-Y table:1 Accessories box:1 Set of allen keys:1 Operational manual(English ):1 RS232 Interface:1 Calibration Certificate:1
