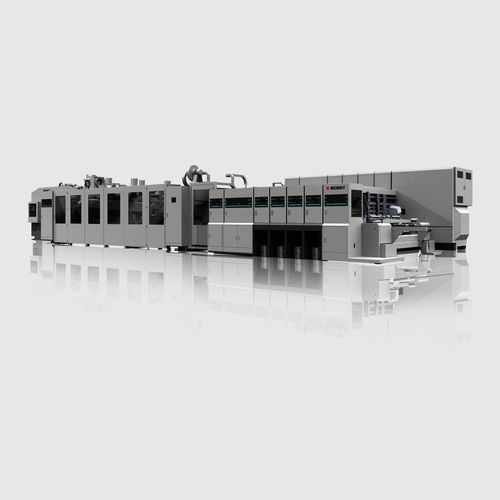

Converting machine NOVAFFG

Overview
The NOVAFFG is an inline RSC converting machine designed for efficient production of medium to large corrugated boxes. Its compact layout and optimized footprint simplify factory integration while delivering up to 18,000 boxes per hour depending on configuration.

Key benefits

• Suitable for medium to large RSC production
• Inline converting technology with reduced maintenance requirements
• Intuitive HMI with color touch screen for easy operation
• Fast setup and production rates up to 18,000 b/h
• Compact footprint and optimized plant layout
• Energy-efficient operation

Opportunistic price/performance ratio

• Consistent, accurate folding and scoring
• Reduced set-up time with Posilock® and automated glue lap extension
• Flexible die-cutting options: top or bottom die-cutter
• Stable, continuous bundle production

Features

• Accurate feeding across flute types from E-flute to double wall with few wear parts
• Automated glue lap extension and Posilock® quick positioning; die-tool change in under 2 minutes
• Top die-cutter for improved waste ejection or bottom die-cutter for internal transverse scorings; optional anvil grinding
• User-friendly controls: sellable first sheet, graphical color touch HMI, full machine control
• Robust slotter with 4 pairs of shafts and 3-step scoring; shaped folding gauging roller and independently driven lower folding belts to minimise fishtailing
• Lean footprint with gear-train feeder-to-die cutter and vacuum automatically adjusted to board size
• Smooth bundle handling: top counter ejector, front-stop damping, operator-controlled back squaring speed and three longitudinal blowers

Product specifications
Processed materials | Corrugated board: 1.2 - 9 mm (1)
Corrugated flute type | A, B, C, D, E, AB, AC, BC, EB, Single, Double (1)
Capability - Speed (b/h) | 15000 | 18000 b/h
Printing - Printing size | max 890 x 2380 mm
Sheet sizes - Sheet length “L” | 600 - 2545 mm
Sheet sizes - Sheet width “l” | 280 x 890 mm
Dimensions - Length | 19.2 m
Dimensions - Width | 5.3 m
Dimensions - Height | 2.9 m

Notes
(1) Depending on material properties

Technical specifications

• Processed material: corrugated board, thickness range 1.2–9 mm
• Supported corrugated flute types: A, B, C, D, E, AB, AC, BC, EB, Single, Double
• Maximum speeds: 15,000 or 18,000 b/h (operation dependent)
• Max printing size: 890 x 2380 mm
• Sheet length (L): 600 – 2545 mm
• Sheet width (l): 280 x 890 mm
• Machine footprint/dimensions: Length 19.2 m · Width 5.3 m · Height 2.9 m
• Set-up improvements: Posilock® quick positioning & locking; automated glue lap extension
• Die-cutting options: Top die-cutter or Bottom die-cutter; anvil grinding system
• Feeding & folding: robust slotter (4 pairs of shafts, 3-step scoring), folding gauging roller and lower folding belts with independent motorization
• Bundle handling: top counter ejector, damping on front stop, back squaring speed control, 3 blowers for bundle stabilization
