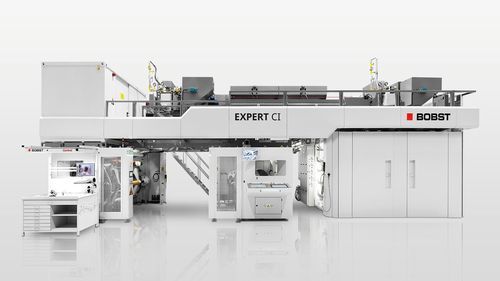

Central drum flexographic press EXPERT CI

7-color8-colorten-color

Overview The EXPERT CI platform is a modular flexographic press engineered for consistent CI flexo production with solvent and water-based inks. It supports 7-color Extended Color Gamut (ECG) workflows and delivers controlled printing results with high productivity through integrated automation and energy-efficient systems.

Key benefits

• Reduced waste and fast job changes via smartGPS and smartSET registration systems.
• Stable ink management and predictable print results with smartFLO inking and chamber doctor blade, plus triLOCK high-torque locking for repeatability.
• High uptime and process control through connectivity, remote access, IoT features and predictive maintenance.

Features

• Modular concept with bridge-mounted additional drying modules and hybrid dual-technology tunnel.
• Shafted duplex winders and fully automatic bi-directional reel splice at production speed; face-to-face winder configuration.
• Precision components: µm-range mechanical guides, servo drives, 1 µm resolution for impression and anilox/plate settings, anti-vibration design.
• triLOCK 3-point locking mechanism for automatic high-torque locking and repeatability.
• smartFLO inking system and chamber doctor blade for controlled ink temperature and flow, compatible with solvent, water-based and ECG processes.

Main processed material

• Paper
• Film
• Aluminium foil
• Laminates
• Non-woven

End-use categories

• Beverages (beer, wine, spirits; juices & soft drinks; water)
• Food (dairy; dry food & snacks; fresh food; frozen & chilled; pet food)
• Home & office (DIY & tools; electronics & appliances; household & laundry; toys & games)
• Industrial & transit (automotive packaging; building & construction; chemical goods; decoration)
• Personal care (cosmetics & fragrances; healthcare; pharma)

Product specifications (table) Capability
Web width: 1100 - 1700 mm
Speed: max 600 m/min
Web tension: 20 - 350 N or 40 - 500 N (up to 3000 N for special applications)
Reel diameter (shaftless winder): 1020 - 1300 mm
Reel diameter (shafted winder): 1020 - 1300 mm

Printing
Number of colours: 8 - 10
Print cylinder repeat: Max. 800 - 1200 mm

Technical specifications

• Web width: 1100 - 1700 mm
• Maximum speed: 600 m/min
• Web tension: 20 - 350 N or 40 - 500 N (up to 3000 N for special applications)
• Reel diameter (shaftless & shafted winder): 1020 - 1300 mm
• Number of colours: 8 - 10
• Print cylinder repeat: Max. 800 - 1200 mm
• Printing technologies supported: solvent-based, water-based, E-beam, Extended Color Gamut (ECG)
• Key systems: smartGPS / smartSET, smartFLO, chamber doctor blade, triLOCK, Full Surface Matrix dryer, oneECG, hybrid tunnel, automatic bi-directional splice, face-to-face winders
• Connectivity: remote production data access, predictive maintenance, IoT-enabled features
