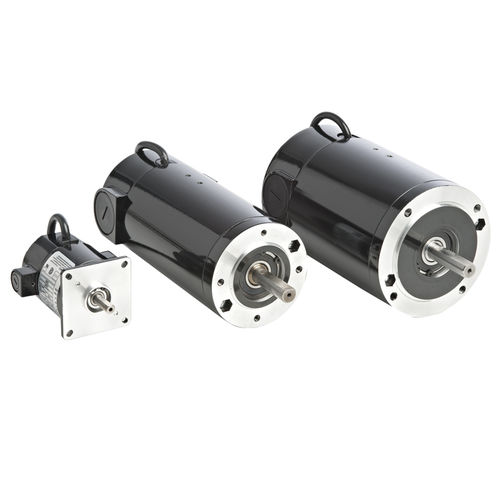

Brushed motor Brush DC MotorsDC180 V130 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 180 V, 130 V, 24 V, 90 V
- Configuration
- permanent magnet, TENV
- Number of poles
- 2-pole
- Applications
- for industrial applications
- Power
Max.: 373 W
(0.51 hp)Min.: 15 W
(0.02 hp)- Torque
Max.: 1.3 Nm
(0.958831 ft.lb)Min.: 0.06 Nm
(0.044254 ft.lb)- Rotational speed
Max.: 2,500 rpm
(15,707.9633 rad.min-1)Min.: 1,725 rpm
(10,838.4947 rad.min-1)- Diameter
Max.: 110 mm
(4.33 in)Min.: 60 mm
(2.36 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
