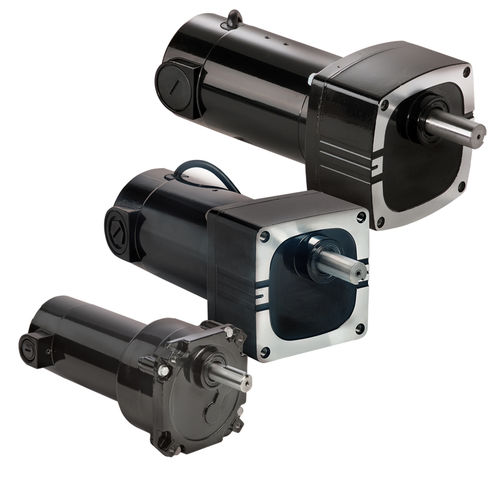

DC gearmotor Brush DC Parallel Shaft Gearmotorsplanetaryhelical gearspur
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- planetary, helical gear, spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W
- Voltage
- 24 V, 12 V, 130 V, 90 V
- Torque
- 20 - 50 Nm, 10 - 20 Nm, 1 - 5 Nm, 5 - 10 Nm, 50 - 100 Nm
- Number of stages
- three-stage, single-stage, four-stage
- Performance
- low-noise, high-performance
- Product applications
- industrial, for conveyor systems, for the packaging industry, for machines, for medical equipment
- Certifications
- ISO
- Gear ratio
Min.: 3.8 unit
Max.: 450 unit
- Operating temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)
Description
Application Information
Up to twice the torque of conventional helical / spur parallel shaft gearboxes of similar size.
90/130V models in US/Imperial dimensions; 12V and 24V models feature metric drive shafts and mounting.
Contact Bodine for models with accessory shafts and mounting options for encoders.
Application Example: Learn how one customer used this gearmotor in a mobile antenna system.
Product Information Sheet (PDF)
Optional Accessories
Flange IP-66 Shaft Seal Kit for Type 60P Gearmotors (U.S.) [model 0962]
