DC gear-motor 3047

brushedhypoidright angle

Overview

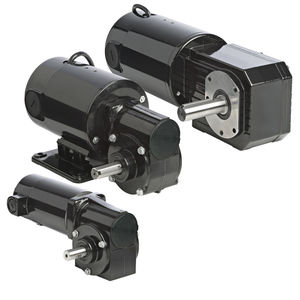

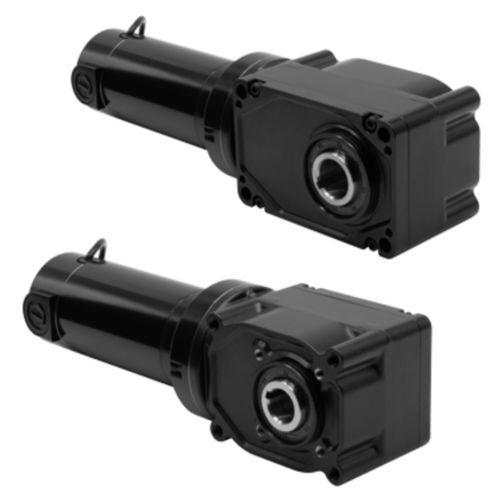

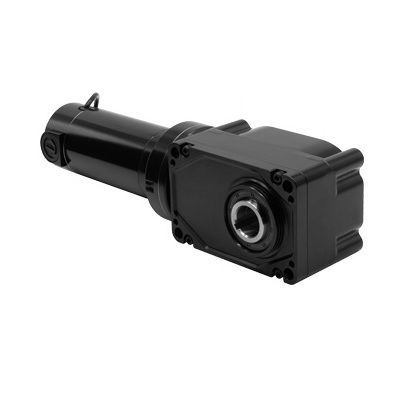

Model 3047 is part of the Hypoid Series 33A7 DC right angle hollow shaft gearmotors available for 130V, 24V and 12V applications. It pairs a 33A motor with a hypoid geartrain and a 1.25-inch hollow shaft to deliver high starting torque and efficient right-angle power transmission.

Documentation

• CAD drawings available (DWG, STEP)
• Wiring diagram available
• Safety Data Sheet for lubricant available

Standard Features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions. TENV. Class F.
• 1.25-inch hollow shaft bore size.
• One plastic shaft cover is included with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation. High-performance grease. Gearmotors are lubricated for life.
• More efficient than similar-sized worm-gear models.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964 (standard/stock models supplied with factory-installed cover over shaft opening).
• Pre-seated motor brushes for optimum performance and quiet operation.
• Hollow shaft eliminates need for shaft couplings and extra mounting hardware.
• Optional base/foot mount brackets and optional shaft kits available.

Optional Accessories

• Base Mount Kit for 30H3 Hollow Shaft Gearmotors (model 0959)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 30H3 1-1/4-inch single shaft, fatigue-proof steel (model 0930)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for multiple stock motors and gearmotors (model 0986)

Technical Specifications

• Model: 3047
• Series: Hypoid Series 33A7
• Speed (rpm): 10
• Rated Torque (lb-in): 1535
• Rated Voltage (V): 24
• Current (Amps): 14
• Peak Torque (lb-in): 3212
• Motor HP: 1/3
• HP Decimal: 0.333
• Gear Ratio: 240
• Radial Load (lbs): 708
• Length XH (inch): 16.37
• Weight (lbs): 24
• Product Type: 33A7FEPM-30H3
• Connection Diagram: 07410101
