DC gear-motor 3043

direct currentbrushedhypoid

Product

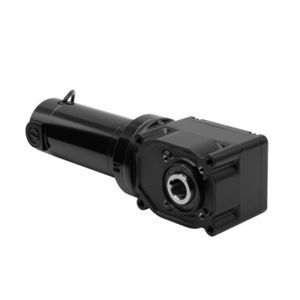

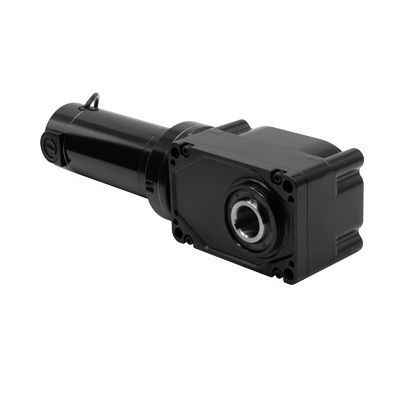

30H3 Series DC right angle hollow shaft gearmotor. Model 3043 is a 24 VDC hollow-shaft gearmotor engineered for right-angle mounting and applications requiring high starting torque.

Specifications (table)

• Speed (rpm): 31
• Rated Torque (lb-in): 510
• Rated Voltage (V): 24
• Current (A): 14
• Peak Torque (lb-in): 1071
• Motor HP: 1/3
• Gear Ratio: 80:1
• Radial Load (lbs): 696
• Length XH (in): 16.37
• Weight (lbs): 24
• Product Type: 33A7FEPM-30H3
• Connection Diagram: 07410101

Standard features

• Performance ratings for 24 VDC models are based on DC power operation.
• 33A motor provides high starting torque, adjustable speed and predictable performance; TENV, Class F.
• 1.25-inch hollow shaft bore.
• One plastic shaft cover supplied with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation; high-performance grease, lubricated for life.
• More efficient than comparable worm-gear units.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964 (standard models shipped with factory cover over shaft opening).
• Pre-seated motor brushes for optimized performance and quiet operation.
• Hollow shaft eliminates need for couplings or extra mounting hardware.

Available resources
CAD drawings (PDF/DWG/STEP) and wiring diagram are available for this model. Safety data sheet for the lubricant used with these gearmotors is referenced.

Optional accessories & related parts

• Base mount kit for 30H3 hollow shaft gearmotors (model 0959).
• IP-44 kit for 33A motors (model 0977).
• Shaft kit 30H3 1-1/4-inch single shaft, fatigue-proof steel (model 0930).
• Encoder shaft kit (model 0964).
• Die cast terminal box kits (models 0984, 1984, 0986) for various motors/gearmotors.

Technical specifications

• Model: 3043
• Series: 30H3
• Type: DC right angle hollow shaft gearmotor
• Rated voltage: 24 VDC
• Speed: 31 rpm
• Rated torque: 510 lb-in
• Peak torque: 1071 lb-in
• Motor power: 1/3 HP (0.333 HP)
• Gear ratio: 80:1
• Rated current: 14 A
• Radial load capacity: 696 lbs
• Length XH: 16.37 in
• Weight: 24 lbs
• Hollow shaft bore size: 1.25 in
• Product type code: 33A7FEPM-30H3
• Connection diagram reference: 07410101
• Lubrication: high-performance grease, lubricated for life
• Mounting: face mount via four tapped holes or through-bolts; unvented gearhousing mounts in any orientation
• Encoder compatibility: optional encoder shaft kit model 0964
