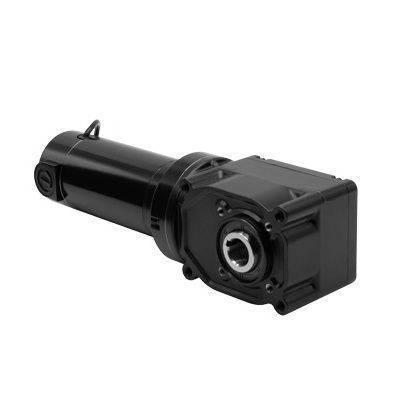

DC gear-motor 3040

brushedright anglehollow-shaft

Overview
Model 3040 is part of the 25H2 Series DC right-angle hollow shaft gearmotors. It delivers a compact right-angle drive with a 1-inch hollow shaft and is intended for industrial motion control applications requiring direct shaft coupling and flexible mounting. Product resources include CAD drawings, images, standard features, wiring diagrams and spare parts.

Specifications

• Speed (rpm): 83
• Rated Torque (lb-in): 210
• Rated Voltage: 24 VDC
• Current (Amps): 14 A
• Peak Torque (lb-in): 440
• Motor HP: 1/3 (0.333 HP)
• Gear Ratio: 30
• Radial Load (lbs): 475
• Length XH (inch): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• Connection Diagram reference: 07410101

Standard Features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A motor provides high starting torque, adjustable speed and consistent performance. TENV, Class F insulation.
• 1-inch hollow shaft eliminates need for couplings and reduces installation hardware.
• One plastic shaft cover included with each gearmotor; standard models supplied with factory-installed cover over shaft opening.
• Face mount via four tapped holes or through-bolts; unvented gearhousing permits mounting in any orientation.
• High-performance, lifetime lubrication with grease-filled gearhousing.
• More efficient than similar-sized worm-gear designs.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964.
• Pre-seated motor brushes for optimum performance and quiet operation.
• Optional base/foot mount brackets and shaft kits available for 25H2 and 30H3 types.

CAD Drawings

• CAD drawings available for model 3040 in PDF, DWG and STEP formats.

Wiring Diagram

• Wiring diagram available (reference 07410101).

Safety Data Sheets

• Lubricant Safety Data Sheet available for related gearmotors.

Optional Accessories

• Base Mount Kit for 25H2 Hollow Shaft Gearmotors (model 0957)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 25H2 1-inch / single shaft / fatigue-proof steel (model 0929)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Parts

• 33A / 32A Brush - Part Number 49201031
• 33A Brush Cap - Part Number 49301001
• 33A / 42A Constant Force Brush Spring - Part Number 57400008

Matching Controls

• Low-voltage PWM DC motor speed control open chassis - 0788
• Low-voltage PWM DC motor speed control open chassis - 0789
