DC gear-motor Model 6240

wormright angle50 W...100 W

Overview

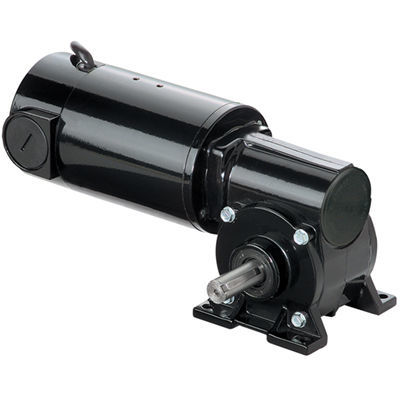

Model 6240, Metric 33A-5F series DC right-angle gearmotor for industrial applications requiring compact right-angle power transmission. Nominal supply 180 V DC with an output speed of 345 rpm and a 5:1 gear ratio.

Key specifications

• Speed: 345 rpm
• Rated torque: 1.0 Nm (8.9 lb-in)
• Peak torque: 3.2 Nm (28 lb-in)
• Power: 54 W (1/14 HP, HPDecimal 0.0714)
• Voltage: 180 V DC
• Current: 0.41 A
• Gear ratio: 5
• Radial load capacity: 335 N (80 lbs)
• Length XH: 263 mm (10.35 in)
• Weight: 7.6 kg (16.8 lbs)

Standard features

• Metric mounting threads and metric drive shaft dimensions.
• 33A motor providing high starting torque and adjustable speed characteristics.
• Industrial lip-type seals on motor and output shafts for contaminant resistance.
• Bronze sleeve bearing on output shaft for reduced noise.
• Permanently lubricated gearing using oil for extended service life.
• Bronze gear for improved shock-load capability.
• Hardened and ground worm for durability and strength.
• Performance ratings for 180 V models are specified for use with an unfiltered SCR speed control (Form Factor = 1.6).

Optional accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• IP-44 kit for 33A motors [model 0977]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

Downloads
CAD drawings available in PDF, DWG and STEP formats (product-specific files on product page). Wiring diagram available (ID 07410097).

Technical specifications

• Model: Model 6240
• Series: Metric 33A-5F
• Speed: 345 rpm
• Rated torque: 1.0 Nm (8.9 lb-in)
• Peak torque: 3.2 Nm (28 lb-in)
• Power: 54 W (1/14 HP, HPDecimal 0.0714)
• Voltage: 180 V DC
• Current: 0.41 A
• Gear ratio: 5
• Radial load capacity: 335 N (80 lbs)
• Length XH: 263 mm (10.35 in)
• Weight: 7.6 kg (16.8 lbs)
• Connection diagram reference: 07410097
• Product type code: 33A5BEPM-5F
