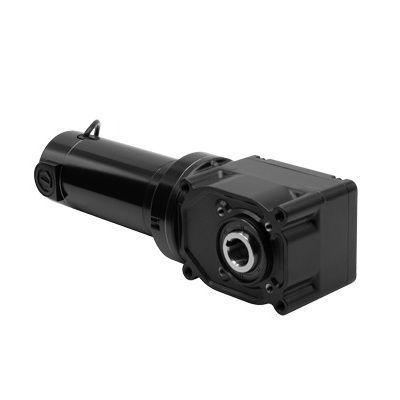

DC gear-motor 3038

direct currentbrushedhypoid

Overview
CAD drawings, images, standard features and safety data sheets are available for Model 3038, a 25H2 Series DC right angle hollow shaft gearmotor designed for high starting torque and versatile mounting.

Specifications

• Speed (rpm): 167
• Rated Torque (lb-in): 105
• Peak Torque (lb-in): 220
• Rated Voltage: 24 VDC
• Current (A): 14
• Motor HP: 1/3 (0.333 HP)
• Gear Ratio: 15
• Radial Load (lbs): 388
• Length XH (in): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• Connection Diagram: 07410101

Standard Features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions. TENV. Class F.
• 1-inch hollow shaft (25.4 mm).
• One plastic shaft cover is included with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation. High-performance grease. Gearmotors are lubricated for life.
• More efficient than similar-sized worm-gear models.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964. (Standard/stock models supplied with factory-installed cover over shaft opening).
• Pre-seated motor brushes for optimum performance and quiet operation.
• Hollow shaft eliminates need for shaft couplings and extra mounting hardware.
• Optional base/foot mount brackets and optional shaft kits available.

Optional Accessories

• Base Mount Kit for 25H2 hollow shaft gearmotors (model 0957)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 25H2 1-inch / single shaft / fatigue-proof steel (model 0929)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Characteristics / technical specifications

• Model: 3038
• Series: 25H2
• Speed (rpm): 167
• Rated Torque: 105 lb-in
• Peak Torque: 220 lb-in
• Rated Voltage: 24 VDC
• Current: 14 A
• Motor HP: 1/3 (0.333 HP)
• Gear Ratio: 15
• Radial Load Capacity: 388 lbs
• Length XH: 14.82 in
• Weight: 20 lbs
• Product Type: 33A7FEPM-25H2
• Connection Diagram Reference: 07410101
