DC gear-motor 3042

wormright anglehollow-shaft

Product Overview

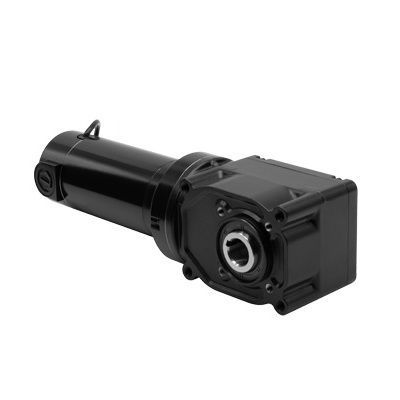

25H2 Series DC right-angle hollow-shaft gearmotor, Model 3042. Compact right-angle gearmotor with a 1-inch hollow shaft, lubricated for life and designed for multiple mounting orientations. Suitable for industrial applications requiring reliable starting torque and space-saving right-angle drive configuration.

CAD & Documentation

• CAD drawings: PDF, DWG and STEP files available for Model 3042
• Wiring diagram available (diagram reference: 07410101)
• Safety Data Sheet available for lubricant used with Type 33A7-25H2 and 33A7-30H3 gearmotors

Standard Features

• Performance ratings for 24 VDC models are based on operation from DC power
• 33A motor delivers high starting torque, adjustable speed and predictable performance; TENV, Class F insulation
• 1-inch (25.4 mm) hollow shaft
• One plastic shaft cover included with each gearmotor
• Face mount via four tapped holes or through-bolts
• Unvented gearhousing mounts in any orientation; high-performance grease; gearmotors lubricated for life
• More efficient than similar-sized worm-gear designs
• Encoder-compatible with optional screw-in encoder shaft kit Model 0964 (standard models supplied with factory-installed cover over shaft opening)
• Pre-seated motor brushes for optimum performance and quiet operation
• Hollow shaft eliminates need for shaft couplings and extra mounting hardware
• Optional base/foot mount brackets and optional shaft kits available

Optional Accessories (examples)

• Base Mount Kit for 25H2 hollow shaft gearmotors (Model 0957)
• IP-44 kit for 33A motors (Model 0977)
• Shaft Kit 25H2 1-inch / single shaft / fatigue-proof steel (Model 0929)
• Encoder Shaft Kit (Model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R and 48R motors and gearmotors (Model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R and 48R (Model 1984)
• L-Bracket Kit for E, F and FX gearmotors (Model 0969)

Technical Specifications

• Speed (rpm): 42
• Rated Torque (lb-in): 390
• Rated Voltage: 24 VDC
• Current (Amps): 14
• Peak Torque (lb-in): 813
• Motor HP: 1/3
• Gear Ratio: 60
• Radial Load (lbs): 575
• Length XH (inch): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• HP Decimal: 0.333
• Connection Diagram Reference: 07410101
