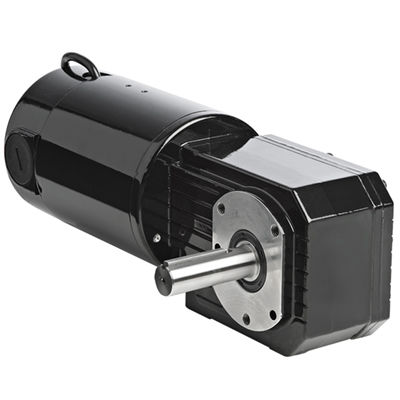

DC gear-motor Model 1366

direct currentright angle100 W...500 W

Product
DC right-angle gearmotor, Model 1366, Metric 42A-GB Series with 280:1 gear ratio, nominal speed 6.2 rpm and 180 V DC rating.

Overview
Metric 42A-GB Series right-angle gearmotor in Model 1366 configuration. Performance ratings shown are for 180V models and are based on use with an unfiltered SCR speed control (Form Factor = 1.6).

Specifications

• Speed (rpm): 6.2
• Rated Torque (Nm): 42.8
• Rated Torque (lb-in): 380
• Peak Torque (Nm): 67.5
• Peak Torque (lb-in): 600
• Power (Watts): 112
• Power (HP): 1/6
• Volts: 180
• Amps: 0.85
• Gear Ratio: 280
• Radial Load (N): 900
• Radial Load (lbs): 200
• Length XH (mm): 297
• Length XH (inch): 11.69
• Weight (kg): 8.8
• Weight (lbs): 19.5
• Connection Diagram: 07410097
• Product Type: 42A5BEPM-GB
• HPDecimal: 0.1492

CAD & Documentation
CAD drawings available for Model 1366 (PDF, DWG, STEP). Wiring diagram available (Connection Diagram reference 07410097). Safety data sheet referenced for related materials.

Optional Accessories

• IP-44 kit for 42A motors (model 0978)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Accessories / Parts (examples)
Replacement parts available for related motors and gearboxes: 42A Brush (Part Number 49200048), 33A/42A Brush Cap (Part Number 49300034), 33A/42A Constant Force Brush Spring (Part Number 57400008).

Standard Features

• Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).

Technical specifications

• Speed: 6.2 rpm
• Rated Torque: 42.8 Nm (380 lb-in)
• Peak Torque: 67.5 Nm (600 lb-in)
• Power: 112 W (1/6 HP)
• Voltage: 180 V DC
• Current: 0.85 A
• Gear Ratio: 280
• Radial Load Capacity: 900 N (200 lbs)
• Length XH: 297 mm (11.69 in)
• Weight: 8.8 kg (19.5 lbs)
• Connection Diagram ref.: 07410097
• Product Type: 42A5BEPM-GB
• HP Decimal: 0.1492
