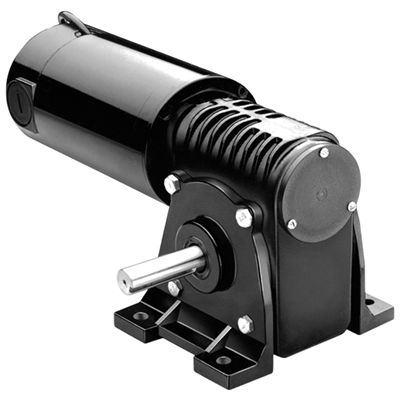

DC gear-motor Model 4296

right angle100 W...500 W180 V

Product Overview
Model 4296 Metric 42A-5H Series DC right-angle gearmotor designed for industrial rotary drive applications requiring compact footprint and right-angle output. Includes connection diagram and product type reference for integration into control systems.

Specifications

• Speed: 96 rpm
• Rated torque: 9.2 Nm (81 lb-in)
• Peak torque: 27.9 Nm (247 lb-in)
• Power: 141 W (0.2 HP / 1/5 HP)
• Voltage: 180 V DC
• Current: 1.0 A
• Gear ratio: 18
• Radial load: 665 N (150 lbs)
• Length XH: 330 mm (13.0 in)
• Weight: 16 kg (35.5 lbs)
• Connection diagram ID: 07410097
• Product type: 42A7BEPM-5H

Standard Features

• Performance ratings for 180 V models are based on use with an unfiltered SCR speed control (form factor = 1.6).

Optional Accessories

• IP-44 kit for 42A motors (model 0978)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Technical specifications

• Speed: 96 rpm
• Rated torque: 9.2 Nm (81 lb-in)
• Peak torque: 27.9 Nm (247 lb-in)
• Power: 141 W (0.2 HP)
• Voltage: 180 V DC
• Current: 1.0 A
• Gear ratio: 18
• Radial load: 665 N (150 lbs)
• Length XH: 330 mm (13.0 in)
• Weight: 16 kg (35.5 lbs)
• Connection diagram: 07410097
• Product type: 42A7BEPM-5H
