DC gear-motor 3045

brushedright anglehollow-shaft

Overview

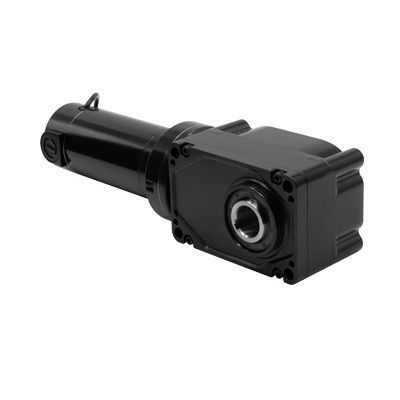

30H3 Series DC right-angle hollow shaft gearmotors — Model 3045. Product page lists CAD drawings, images, distributors and matching controls for Model 3045. The unit is a hollow-shaft right-angle gearmotor designed for 24 VDC operation with a 33A motor. The hollow shaft eliminates the need for shaft couplings; one plastic shaft cover is included. Face mount via four tapped holes or through-bolts. Unvented gearhousing mounts in any orientation. Gearmotors are lubricated for life with high-performance grease.

Specifications
Speed (rpm): 16
Rated Torque (lb-in): 1025
Rated Voltage: 24 VDC
Current (Amps): 14 A
Peak Torque (lb-in): 2141
Motor HP: 1/3
Gear Ratio: 160
Radial Load (lbs): 708
Length XH (inch): 16.37
Weight (lbs): 24
Product Type: 33A7FEPM-30H3
HP Decimal: 0.333
Connection Diagram: 07410101

CAD Drawings & Documents

• CAD drawings available for Model 3045: PDF, DWG, STEP (downloads listed on product page).
• Wiring diagram available (reference 07410101).
• Safety Data Sheet (lubricant) available for relevant gearmotors (listed on product page).

Standard Features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A motor provides high starting torque, adjustable speed, and predictable performance. TENV. Class F insulation.
• 1.25-inch hollow shaft bore size.
• One plastic shaft cover included with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation. High-performance grease—gearmotors lubricated for life.
• More efficient than similar-sized worm-gear models.
• Encoder-compatible with optional screw-in encoder shaft kit (model 0964). Standard models supplied with factory-installed cover over shaft opening.
• Pre-seated motor brushes for optimum performance and reduced noise.
• Hollow shaft eliminates need for shaft couplings and extra mounting hardware.
• Optional base/foot mount brackets and optional shaft kits available (models referenced on product page).

Optional Accessories (listed on page)

• Base Mount Kit for 30H3 Hollow Shaft Gearmotors (model 0959)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 30H3 1-1/4-inch / single shaft / fatigue-proof steel (model 0930)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Technical specifications

• Model: 3045
• Series: 30H3
• Motor type: 33A (TENV, Class F)
• Speed: 16 rpm
• Rated torque: 1025 lb-in
• Peak torque: 2141 lb-in
• Rated voltage: 24 VDC
• Current: 14 A
• Motor horsepower: 1/3 HP (0.333 decimal)
• Gear ratio: 160
• Radial load capacity: 708 lbs
• Length XH: 16.37 inch
• Weight: 24 lbs
• Hollow shaft bore size: 1.25 inch
• Connection diagram reference: 07410101
