DC gear-motor Model 3037

brushedwormright angle

Product

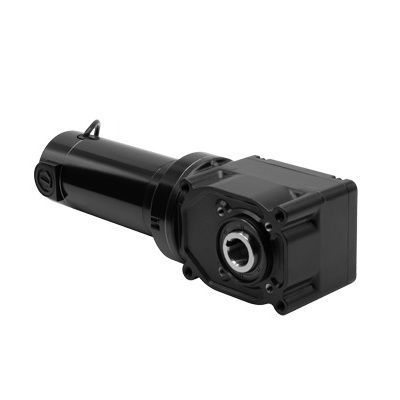

25H2 Series DC right-angle hollow-shaft gearmotor, Model 3037. Compact right-angle gearmotor with 1-inch hollow shaft, rated 24 VDC and 1/3 hp (0.333 HP), nominal speed 250 rpm and rated torque 70 lb-in. Designed for direct shaft engagement where space is limited and predictable torque is required.

Available downloads / drawings (site provides)
CAD drawings available in PDF, DWG and STEP formats; wiring diagram available (PDF); lubricant Safety Data Sheet available (PDF).

Optional accessories

• Base Mount Kit for 25H2 Hollow Shaft Gearmotors (model 0957)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 25H2 1-inch / single shaft / fatigue-proof steel (model 0929)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Standard features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions. TENV. Class F.
• 1-inch hollow shaft to eliminate external couplings.
• One plastic shaft cover included with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation. High-performance grease; gearmotors lubricated for life.
• Higher efficiency compared with similar-sized worm-gear models.
• Encoder-compatible with optional screw-in encoder shaft kit (model 0964); stock models supplied with factory cover over shaft opening.
• Pre-seated motor brushes for optimized performance and reduced noise.
• Optional base/foot mount brackets: model 0957 for 25H2 and model 0959 for 30H3 gearmotors.
• Optional shaft kits: model 0929 for 25H2 and 0930 for 30H3 gearmotors.

Availability / Ordering
Order quantity: 1-25. Web price shown excludes taxes, shipping, and handling charges.

Technical specifications

• Speed (rpm): 250
• Rated Torque (lb-in): 70
• Rated Voltage: 24 VDC
• Current (Amps): 14
• Peak Torque (lb-in): 147
• Motor HP: 1/3
• Gear Ratio: 10
• Radial Load (lbs): 342
• Length XH (inch): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• HP Decimal: 0.333
• Connection Diagram reference: 07410101
