DC gear-motor 3046

brushedright anglehollow-shaft

Product

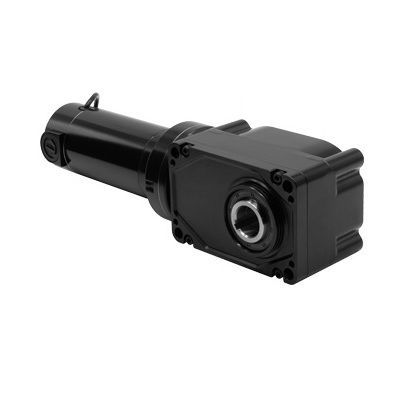

Model 3046, 30H3 Series DC right-angle hollow-shaft gearmotor designed for low-speed, high-torque industrial applications.

Specifications

• Speed (rpm): 13
• Rated Torque: 1280 lb-in
• Peak Torque: 2676 lb-in
• Rated Voltage: 24 VDC
• Current: 14 A
• Motor HP: 1/3 (0.333 decimal HP)
• Gear Ratio: 200
• Radial Load Capacity: 708 lbs
• Length XH: 16.37 in
• Weight: 24 lbs
• Product Type: 33A7FEPM-30H3
• Connection Diagram ID: 07410101

CAD Drawings

• Download PDF
• Download DWG
• Download STEP

Wiring Diagram

• Wiring diagram 07410101 (available as downloadable PDF)

Safety Data Sheets

• Lubricant safety data sheet for type 33A7-25H2 and 33A7-30H3 gearmotors (available as downloadable PDF)

Optional Accessories

• Base Mount Kit for 30H3 hollow shaft gearmotors [model 0959]
• IP-44 kit for 33A motors [model 0977]
• Shaft Kit 30H3 1-1/4-inch / single shaft / fatigue-proof steel [model 0930]
• Encoder Shaft Kit [model 0964]
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

Standard Features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A motor provides high starting torque, adjustable speed, and predictable performance across operating conditions. TENV. Class F.
• 1.25-inch hollow shaft bore size.
• One plastic shaft cover included with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation. High-performance grease; gearmotors lubricated for life.
• More efficient than similar-sized worm-gear models.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964. Standard models supplied with factory-installed cover over shaft opening.
• Pre-seated motor brushes for optimum performance and quiet operation.
• Hollow shaft eliminates need for shaft couplings and extra mounting hardware.
• Optional base/foot mount brackets – model 0957 for type 25H2, and model 0959 for type 30H3 gearmotors.
• Optional shaft kits - model 0929 for type 25H2 and 0930 for type 30H3 gearmotors.

Technical specifications

• Model: 3046
• Series: 30H3
• Speed (rpm): 13
• Rated Torque: 1280 lb-in
• Peak Torque: 2676 lb-in
• Rated Voltage: 24 VDC
• Current: 14 A
• Motor HP: 1/3 (0.333 decimal HP)
• Gear Ratio: 200
• Radial Load Capacity: 708 lbs
• Length XH: 16.37 in
• Weight: 24 lbs
• Product Type: 33A7FEPM-30H3
• Connection Diagram ID: 07410101
