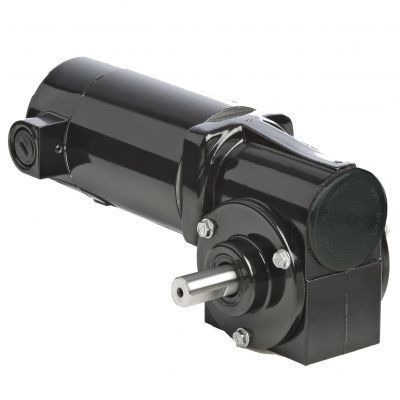

DC gear-motor Model 1094

direct currentbrushedright angle

Product
Model 1094 is a Metric 24A-3F series DC right-angle gearmotor by Bodine Electric Company. The listing provides technical specifications, CAD drawings, wiring diagram, safety data sheet references, optional accessories and compatible controls and spare parts useful for integration in industrial applications.

Technical specifications

• Speed: 172 rpm
• Rated torque: 0.6 Nm (5.3 lb-in)
• Peak torque: 3.0 Nm (26 lb-in)
• Power: 23 W (1/32 HP)
• Voltage: 180 V DC
• Current: 0.18 A
• Gear ratio: 10
• Radial load: 180 N (40 lbs)
• Length XH: 189 mm (7.4 in)
• Weight: 2.4 kg (5.3 lbs)
• Connection diagram reference: 07410097
• Product type code: 24A4BEPM-3F

Standard features

• Performance ratings for 180 V models are based on operation with an unfiltered SCR speed control (form factor = 1.6).

CAD / drawing resources

• CAD drawings available in PDF, DWG and STEP formats for Model 1094.
• Wiring diagram reference provided (07410097).
• Relevant Safety Data Sheet (SDS) referenced for related lubricants.

Optional accessories

• IP-44 protection kit for 24A motors (model 0976) available as an option.

Matching controls & parts

• Compatible unfiltered SCR DC speed controls and basic control examples listed.
• Replacement parts for 24A series: brushes, brush caps, springs and other service items.
