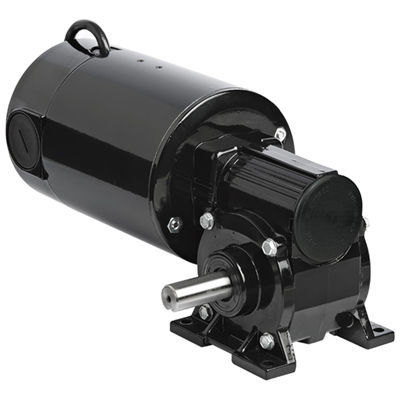

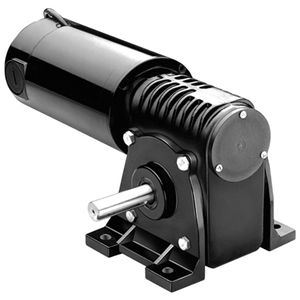

DC gear-motor Model 4236

direct currentright angle100 W...500 W

Product Overview
The Model 4236 is a DC right-angle gearmotor in the Metric 42A-5N series. It provides a nominal speed of 85 rpm, rated torque of 6.2 Nm and peak torque up to 20.0 Nm. CAD files and wiring resources are available to support design integration and installation.

Specifications

• Model: 4236
• Series: Metric 42A-5N
• Speed: 85 rpm
• Rated torque: 6.2 Nm (55 lb-in)
• Peak torque: 20.0 Nm (177 lb-in)
• Power: 121 W (0.1666 HP)
• Voltage: 180 V DC
• Current: 0.85 A
• Gear ratio: 20:1
• Radial load capacity: 530 N (120 lbs)
• Length XH: 263 mm (10.35 in)
• Weight: 7.6 kg (16.8 lbs)
• Connection diagram ID: 07410097
• Product type code: 42A5BEPM-5N

CAD Drawings

• Information sheet (PDF)
• Drawing file (DWG)
• 3D model (STEP)

Wiring Diagram

• Reference: 07410097 (downloadable)

Safety Data Sheets

• ExxonMobil material safety data sheet (product-related SDS listed)

Optional Accessories

• IP-44 kit for 42A motors (model 0978)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Standard Features

• Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).

Technical specifications

• Speed: 85 rpm
• Rated Torque: 6.2 Nm (55 lb-in)
• Peak Torque: 20.0 Nm (177 lb-in)
• Power: 121 W (1/6 HP)
• Voltage: 180 V DC
• Current: 0.85 A
• Gear ratio: 20:1
• Radial load capacity: 530 N (120 lbs)
• Length XH: 263 mm / 10.35 in
• Weight: 7.6 kg / 16.8 lbs
