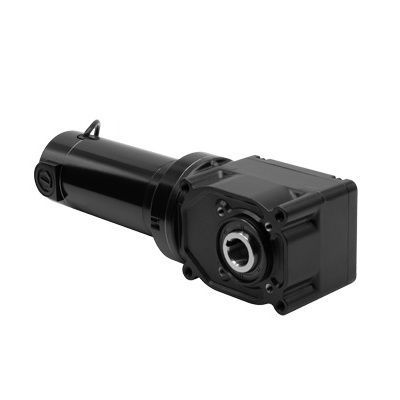

DC gear-motor 3039

wormright anglehollow-shaft

Product overview
Model 3039 from the 25H2 Series DC right-angle hollow-shaft gearmotors. Compact right-angle drive with a 1-inch hollow shaft for direct coupling in industrial motion systems.

Key specifications

• Speed: 125 rpm
• Rated torque: 140 lb·in
• Peak torque: 293 lb·in
• Rated voltage: 24 VDC
• Current: 14 A
• Motor power: 1/3 HP (0.333 HP)
• Gear ratio: 20:1
• Radial load capacity: 419 lbs
• Hollow shaft diameter: 1 in
• Length XH: 14.82 in
• Weight: 20 lbs
• Product type: 33A7FEPM-25H2
• Connection diagram: 07410101

CAD Drawings

• Download PDF
• Download DWG
• Download STEP

Wiring Diagram

• Download PDF (Wiring diagram 07410101)

Safety Data Sheets

• SDS - Lubricant safety data sheet for type 33A7-25H2 and 33A7-30H3 gearmotors

Optional Accessories

• Base Mount Kit for 25H2 Hollow Shaft Gearmotors (model 0957)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 25H2 1-inch / single shaft / fatigue-proof steel (model 0929)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Matching Controls

• 0788
• 0789

Standard Features

• Performance ratings for 24 VDC models based on DC power operation.
• 33A motor: high starting torque, adjustable speed and consistent performance across operating conditions. TENV. Class F.
• 1-inch hollow shaft for direct drive without couplings.
• One plastic shaft cover included with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation; factory-filled high-performance grease and lifetime lubrication.
• More efficient than comparable worm-gear units of similar size.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964; stock units supplied with cover over shaft opening.
• Pre-seated motor brushes for optimized performance and reduced noise.
• Optional base/foot mount brackets (model 0957 for type 25H2, model 0959 for type 30H3).
• Optional shaft kits available (model 0929 for type 25H2, model 0930 for type 30H3).

Technical specifications

• Speed (rpm): 125
• Rated Torque (lb-in): 140
• Rated Voltage: 24 VDC
• Current (Amps): 14 A
• Peak Torque (lb-in): 293
• Motor HP: 1/3 (HP Decimal: 0.333)
• Gear Ratio: 20
• Radial Load (lbs): 419
• Length XH (inch): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• Connection Diagram: 07410101
