DC gear-motor 3041

right anglehollow-shaft100 W...500 W

Product

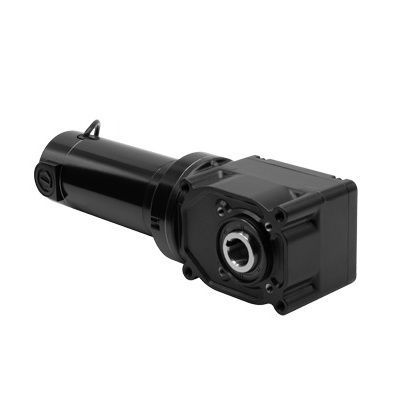

Model 3041 from the 25H2 Series DC right-angle hollow shaft gearmotors. Equipped with a 1-inch hollow shaft and an unvented gearhousing, supplied lubricated for life. Intended for industrial applications requiring compact right-angle torque transmission and straightforward shaft coupling elimination.

Specifications

• Speed (rpm): 63
• Rated Torque (lb-in): 260
• Rated Voltage: 24 VDC
• Current (Amps): 14 A
• Peak Torque (lb-in): 542
• Motor HP: 1/3
• Gear Ratio: 40
• Radial Load (lbs): 518
• Length XH (inch): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• HP Decimal: 0.333
• Connection Diagram: 07410101

CAD Drawings

• Download PDF
• Download DWG
• Download STEP

Wiring Diagram

• Wiring diagram available (reference 07410101)

Standard Features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A motor provides high starting torque, adjustable speed and predictable performance across operating conditions. TENV. Class F insulation.
• 1-inch hollow shaft eliminates need for additional shaft couplings.
• One plastic shaft cover included with each gearmotor (factory-installed on stock models).
• Face mount via four tapped holes or through-bolts for flexible installation.
• Unvented gearhousing mounts in any orientation; filled with high-performance grease and lubricated for life.
• More efficient than comparable worm-gear configurations of similar size.
• Encoder-compatible with optional screw-in encoder shaft kit (model 0964).
• Pre-seated motor brushes for optimized performance and reduced noise.
• Optional base/foot mount brackets available (model 0957 for 25H2).
• Optional shaft kits available (model 0929 for 25H2).

Optional Accessories

• Base Mount Kit for 25H2 Hollow Shaft Gearmotors (model 0957)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 25H2 1-inch / single shaft / fatigue-proof steel (model 0929)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Technical Specifications

• Speed (rpm): 63
• Rated Torque (lb-in): 260
• Rated Voltage: 24 VDC
• Current (Amps): 14 A
• Peak Torque (lb-in): 542
• Motor HP: 1/3
• Gear Ratio: 40
• Radial Load (lbs): 518
• Length XH (inch): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• HP Decimal: 0.333
• Connection Diagram Reference: 07410101
