DC gear-motor Model 3036

brushedhypoidright angle

Overview

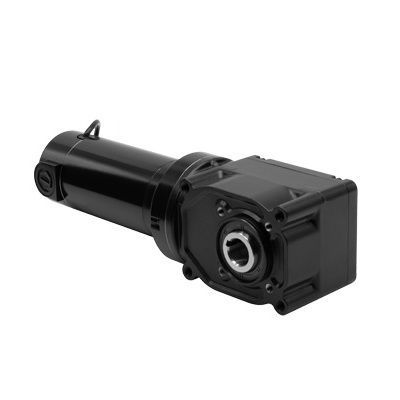

Model 3036 from the 25H2 series is a 24 V DC right-angle hollow shaft gearmotor offering a compact footprint, high starting torque and a sealed, unvented gearhousing. CAD drawings, images and full specifications are available for system integration and installation planning.

Standard Features

• Performance ratings for 24 VDC versions are based on DC power operation.
• 33A motor provides high starting torque, adjustable speed and predictable performance across operating conditions; TENV, Class F insulation.
• 1-inch hollow shaft to eliminate external couplings and reduce mounting hardware.
• One plastic shaft cover supplied with each gearmotor (standard/stock models include factory-installed cover over shaft opening).
• Face mount via four tapped holes or through-bolts for flexible installation.
• Unvented gearhousing mounts in any orientation; high-performance grease and lifetime lubrication.
• More efficient than similar-sized worm-gear designs.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964.
• Pre-seated motor brushes for consistent performance and reduced noise.
• Optional base/foot mount brackets (model 0957 for 25H2; model 0959 for 30H3) and optional shaft kits (model 0929 for 25H2; 0930 for 30H3).

Optional Accessories

• Base Mount Kit for 25H2 Hollow Shaft Gearmotors (model 0957)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 25H2 1-inch / single shaft / fatigue-proof steel (model 0929)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Downloads

• CAD Drawings: PDF, DWG, STEP available for Model 3036.
• Wiring Diagram: diagram referenced as 07410101 (downloadable PDF).
• Safety Data Sheets: lubricant SDS referenced for 33A7 / 25H2 and 33A7-30H3.

Technical Specifications

• Model: Model 3036
• Series: 25H2 Series DC Right Angle Hollow Shaft Gearmotors
• Speed (rpm): 500
• Rated Torque (lb-in): 35
• Peak Torque (lb-in): 73
• Rated Voltage (V): 24
• Current (Amps): 14
• Motor HP: 1/3
• HP Decimal: 0.333
• Gear Ratio: 5
• Radial Load (lbs): 277
• Length XH (inch): 14.82
• Weight (lbs): 20
• Product Type: 33A7FEPM-25H2
• Connection Diagram: 07410101
