DC gear-motor Model 3044

brushedhypoidright angle

Product

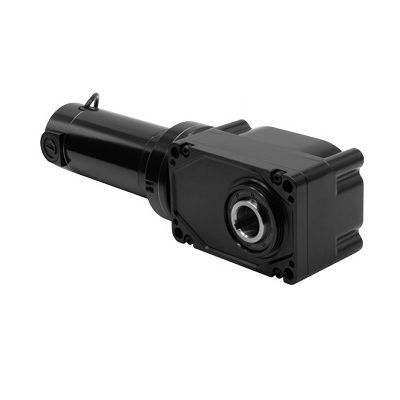

Model 3044 from the 30H3 Series DC right-angle hollow-shaft gearmotors. Page includes CAD drawings, images, wiring diagrams and safety data sheets relevant to Model 3044.

Available Downloads

• CAD Drawings: PDF, DWG, STEP (for Model 3044)
• Wiring diagram for connection diagram 07410101
• Safety Data Sheet for lubricant used with these gearmotors

Standard Features

• Performance ratings of 24 VDC models are based on operation from DC power.
• 33A motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions. TENV. Class F.
• 1.25-inch hollow shaft bore size.
• One plastic shaft cover is included with each gearmotor.
• Face mount via four tapped holes or through-bolts.
• Unvented gearhousing mounts in any orientation. High-performance grease. Gearmotors are lubricated for life.
• More efficient than similar-sized worm-gear models.
• Encoder-compatible with optional screw-in encoder shaft kit model 0964 (standard/stock models supplied with factory-installed cover over shaft opening).
• Pre-seated motor brushes for optimum performance and quiet operation.
• Hollow shaft eliminates need for shaft couplings and extra mounting hardware.
• Optional base/foot mount brackets – model 0957 for type 25H2, and model 0959 for type 30H3 gearmotors.
• Optional shaft kits - model 0929 for type 25H2 and 0930 for type 30H3 gearmotors.

Optional Accessories (examples)

• Base Mount Kit for 30H3 Hollow Shaft Gearmotors (model 0959)
• IP-44 kit for 33A motors (model 0977)
• Shaft Kit 30H3 1-1/4-inch single shaft, fatigue-proof steel (model 0930)
• Encoder Shaft Kit (model 0964)
• Die cast terminal box kits (various models)

Notes

• All prices shown on the page are in U.S. dollars; web price excludes taxes, shipping, and handling charges.
• Order quantity on the product page indicates 1–25 units available.

Technical specifications

• Speed (rpm): 21
• Rated Torque (lb-in): 770
• Rated Voltage (V): 24
• Current (Amps): 14
• Peak Torque (lb-in): 1606
• Motor HP: 1/3
• Gear Ratio: 120
• Radial Load (lbs): 708
• Length XH (inch): 16.37
• Weight (lbs): 24
• Product Type: 33A7FEPM-30H3
• HP Decimal: 0.333
• Connection Diagram: 07410101
