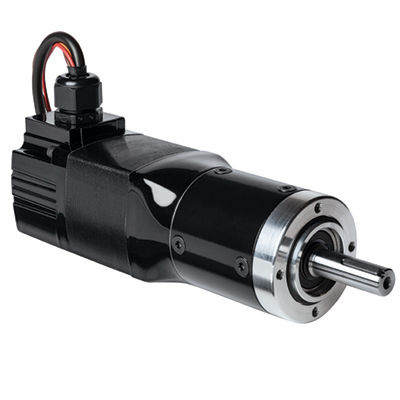

Model 7032 — Metric 22B4-60P Series 24V Inline Planetary Brushless DC (BLDC) Parallel Shaft Gearmotor.

CAD Drawings

• INFM0408-A (PDF)
• INFM0408-A (DWG)
• INFM0408-A (STEP)

Wiring Diagram

• 07410825 (PDF)

Safety Data Sheets

• Super Lube Safety Data Sheet (PDF)

Featured

• Bodine 22B4-60P planetary gearmotor product brochure (PDF)

Optional Accessories

• Encoder Shaft Kit (model 0964)
• Flange Kit for Type 60P Gearmotors (Metric) (model 0961)

Standard Features

• Requires a 24V brushless DC control set for 120° commutation angle
• Up to twice the torque of conventional helical/spur parallel shaft gearboxes of similar size
• Unvented gearhousing mounts in any orientation
• Permanently lubricated with high-performance lubricant
• Hardened steel gears for long life and maximum performance
• Standard backlash < 60 arc minutes

Specifications / Technical Data

• Speed (1/min): 313
• Rated Torque (Nm): 2.7
• Rated Voltage: 24V
• Amps (24V Model): 5.6
• Peak Torque (Nm): 12
• Power (Watts): 93
• Gear Ratio: 8:1
• Radial Load (N): 249
• Length XH (inch): 7.0
• Weight (lbs): 5.1
• Product Type: 22B4FEBL-60P1
• Accessory Shaft: NO
• Power Decimal (HP): 0.125 (1/8)
