Brushless motor 3317

electronically commutatedDCBLDC

Product

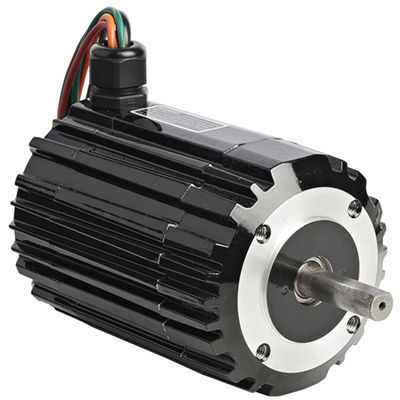

Model 3317 — 34B Series BLDC motor for industrial applications, compact frame with electronic commutation.

Key specifications

• Speed: 10,000 rpm
• Rated torque: 33 oz-in (≈0.233 N·m)
• Rated voltage: 130 V
• Motor power: 1/3 HP (≈0.25 kW)
• Torque constant: 14.5 oz-in/A
• Voltage constant: 10.7 V/krpm
• Winding resistance: 1.7 Ω
• Winding inductance: 4.6 mH
• Rotor inertia: 0.0154 oz-in·sec
• Radial load capacity: 42 lbs (≈19.05 kgf)
• Overall length (XH): 4.56 in (≈115.8 mm)
• Weight: 7 lbs (≈3.18 kg)
• Product type: 34B4BEBL
• Accessory shaft: No
• Connection diagram reference: 07410268

CAD Drawings and Wiring Diagram

• CAD drawings available for model 3317 in PDF, DWG and STEP formats
• Wiring diagram available (reference 07410268)

Optional Accessories

• L-Bracket Kit for 34B and 34R motors (model 0979)
• 6-foot Cable Kit for Encased BLDC Controls (model 3982)

Standard Features

• Totally enclosed, non-ventilated (IP-44)
• Plug-in connectors facilitate electrical connections
• Electronic commutation for quiet operation and reduced EMI; eliminates brush maintenance
• Molded Hall sensor assembly for accurate commutation
• Wound stator with exposed laminations for effective heat transfer and maximum power per frame size
• Rare-earth magnets on the rotor for high torque and low rotor inertia

Technical specifications

• Speed (rpm): 10,000
• Rated Torque (oz-in): 33 (≈0.233 N·m)
• Rated Voltage: 130 V
• Motor HP: 1/3 (≈0.25 kW)
• Torque Constant (oz-in/A): 14.5
• Voltage Constant (V/krpm): 10.7
• Winding Resistance (Ω): 1.7
• Winding Inductance (mH): 4.6
• Rotor Inertia (oz-in·sec): 0.0154
• Radial Load (lbs): 42 (≈19.05 kgf)
• Length XH (in): 4.56 (≈115.8 mm)
• Weight (lbs): 7 (≈3.18 kg)
• Product Type: 34B4BEBL
• Accessory Shaft: NO
• Connection Diagram: 07410268
