DPDT switch Rollo Comfort 24/7
flush-mountLEDsafety

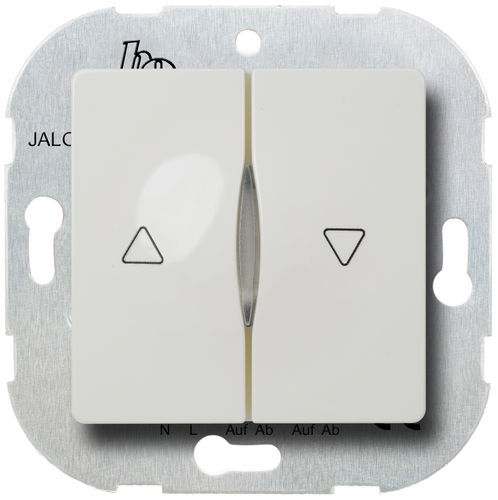

DPDT switch - Rollo Comfort 24/7 - Bodo Ehmann GmbH - flush-mount / LED / safety
DPDT switch - Rollo Comfort 24/7 - Bodo Ehmann GmbH - flush-mount / LED / safety
DPDT switch - Rollo Comfort 24/7 - Bodo Ehmann GmbH - flush-mount / LED / safety - image - 2
DPDT switch - Rollo Comfort 24/7 - Bodo Ehmann GmbH - flush-mount / LED / safety - image - 3
Add to favorites
Compare this product

Characteristics

Number of poles
DPDT
Mounting
flush-mount
Other characteristics
control, LED, safety

Description

Product name
Rollo Comfort blind switch 24/7

Functions
  • Simple programming of day and week schedules
  • Manual operation at any time via push-button
  • Microprocessor-controlled
  • Child lock / program lock
  • Program memory backup on power failure and LED function indicators
  • External connection for group switching, twilight switch, wind sensors, timer and other 230 V signal devices

Installation / Mounting
For flush-mounted switch boxes up to Ø 65 mm
For installation in standard switch ranges with 50x50 mm inner dimension (use adapter frame if required)

Further technical notes
750 VA switching capacity
230 V ~ / 50 Hz nominal voltage
Color: White (similar RAL 9010)

Features
Color: White
Frame: without frame
Control type: momentary push-button

Characteristics / Specifications
  • Product line / model: Rollo Comfort
  • Switching capacity: 750 VA
  • Nominal voltage: 230 V ~ / 50 Hz
  • Operation: momentary push-button (manual operation by push available)
  • Control: microprocessor with program memory
  • Programs: day and week schedules, program lock / child lock
  • Safety functions: program backup at power failure, LED function indicators
  • Connections: external connection for group switching, twilight and wind sensors, timer and other 230 V signal devices
  • Installation: flush-mounted switch boxes up to Ø 65 mm, suitable for 50x50 mm inner dimension
  • Color / Design: White (similar RAL 9010), without frame
  • EAN: 4012096005667
  • Product number / SKU: 6661x0600
