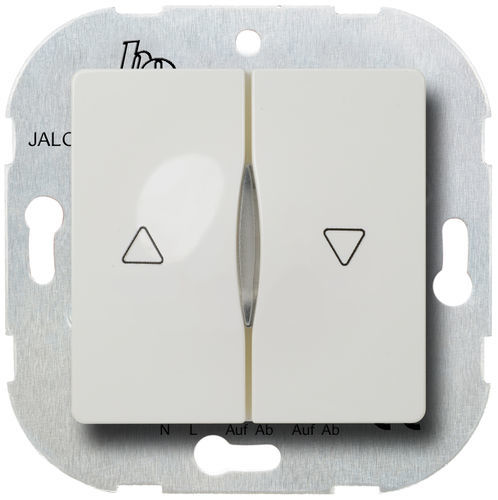

Flush-mount switch Rollo Comfort 24

DPDTmanualcontrol

Product description
Rollo Comfort Jalousieschalter 24

Main features

• Fast programming in three seconds
• Weekly program: identical travel time for each weekday (daily repetition)
• Manual operation at any time via push-button
• Microprocessor-controlled
• Child lock / program lock
• External connection for group control, dusk sensor, wind sensors, time switch and other 230 V signal devices
• Programming possible during power failure
• For installation in flush-mounted switch boxes up to Ø 65 mm
• For installation in standard switch programs with 50×50 mm inner dimension (intermediate frames may be required; available in shop Art.-No. 1762x0201pw)

Technical data (short)
750 VA switching capacity
230 V ~ 50 Hz nominal voltage
Color: Pure white (similar to RAL 9010)

Additional product data
Control type: Push-button
Frame: without frame
Suitable for flush-mounted switch boxes Ø 65 mm

Specifications

• Product name: Rollo Comfort Jalousieschalter 24
• Switching capacity: 750 VA
• Nominal voltage: 230 V ~ 50 Hz
• Color: White (similar to RAL 9010)
• Installation: 50×50 mm inner dimension, flush-mounted switch box Ø 65 mm
• Program functions: 24h timer, weekly program, manual operation, program lock
• Interfaces: External connection for 230 V signal devices (group control, dusk, wind, time switch)
• Product number / SKU: 6660x0600
• EAN / GTIN-13: 4012096005643
