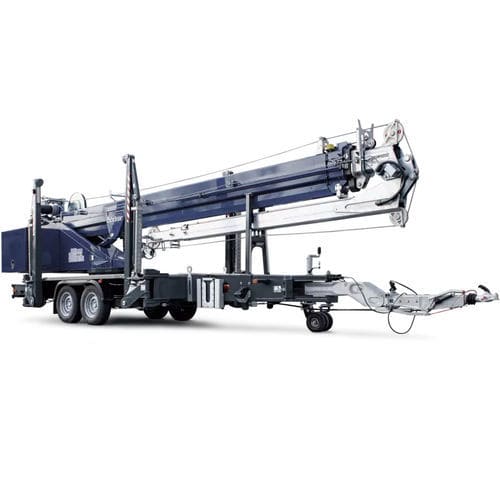

Trailer-mounted crane AHK 30 KS

luffing jibtelescopicfolding

To ensure an optimal load distribution as well as good driving characteristics, the trailer crane AHK 30 KS is mounted on a chassis with tandem axle. The trailer crane possesses a swivel drawbar with ball clutch or truck coupling. When these are swiveled in, the total length of the crane will be significant reduced. A solid support wheel with additional air wheels enables enhanced manoeuverability even on soft ground. Due to a hydraulic cylinder the double telescopic mast will be errected to approx. 85 degrees. The aluminium mast package is extended like a telescope by a telescopic cylinder and flyer chains. The jib is two times extendible to a length of maximal 9.10 m and could be hydraulically erected to approx. 160 degrees. All crane functions are commanded by a sensible proportional control. The drive is carried out by a performant Honda petrol engine or optional by a Yanmar Diesel engine both with 15.5 kW or an electric motor with 15 kW. The operator can start and stop the motor via the remote control of the crane. The AHK 30 KS is equipped with a performant automotive drive as a standard feature. The drive also can be controlled via the remote control. Furthermore, an auto-levelling automatically supporting the machine and an automatic building up are also part of the standard feature. The AHK 30 KS is equipped with the fully variable support control. Thanks to this control system, all four outriggers can be adjusted individually in three different angles (5°/30°/55°). As a result, operators can adjust the AHK 30 KS to the given circumstances on-site even more precisely.
