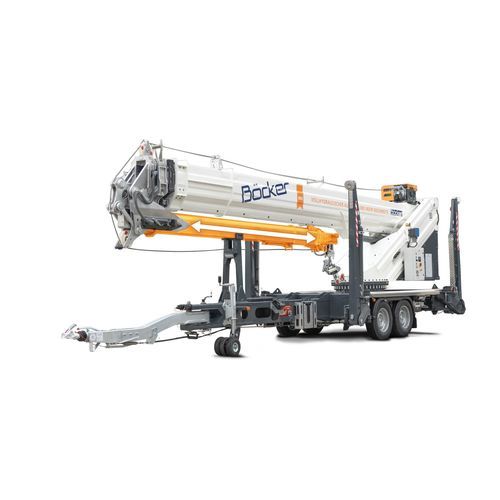

Trailer-mounted crane AHK 36e X

telescopicfor constructionlifting

Product overview
The AHK 36e X is a Böcker trailer crane of the NeXt generation combining high lifting performance with an electric, battery-powered drive concept. It features a 2-section fully hydraulic telescopic jib, a 1.5 t electric winch and optional additional ballasting to extend reach, delivering combustion-equivalent performance with low noise and emissions.

Key features

• 2-section fully hydraulic telescopic jib, extendable via colour radio remote control; telescoping under load possible (standard up to 34 m, optional 36 m)
• Electric winch (1.5 t) with high rope speeds and energy recovery during lowering
• Battery drive (12.2 kWh) with low consumption: up to ~140 typical lifts or over 10 hours normal operation; rechargeable via standard 230 V mains socket
• Optional additional ballasting (e.g. 250 kg counterweight) increases reach by approx. 2 m
• Revised chassis with outriggers pivoted forward in transport position increases rear slope angle by 25% for improved ground clearance
• Hydraulic boom allows telescoping under load and fast, automatic crane setup in confined spaces

Advantages

• Electric, quiet and low-emission operation with energy recuperation
• Performance comparable to combustion engines with a maximum payload of 1,500 kg (optional 2,400 kg)
• High working heights: up to 32.2 m in platform mode (EasyLock system, PK 250-D)
• Flexibility on slopes and uneven ground due to increased slope angle and ground clearance

Detailed benefits
2-section hydraulically extendable jib
The fully hydraulic boom is controlled via colour radio remote and provides an outreach up to 34 m (option 36 m). Telescoping under load enables transport directly into buildings and simplifies setup in tight sites.

Record working height in platform mode
Converted to a work platform (EasyLock system, PK 250-D), the AHK 36e X reaches a maximum working height of 32.2 m for secure work at height.

Improved ground clearance
The redesigned chassis pivots the outriggers forward in transport position, increasing the rear slope angle by 25% and allowing safer access on steeper gradients and uneven terrain.

Optional additional ballasting
An ergonomically suspended counterweight system can be fitted after setup to extend the working range; a 250 kg counterweight adds roughly 2 m reach in all directions.

High rope speed and energy recovery
The 1.5 t electric winch provides high working and rope speeds while consuming little energy and feeding energy back into the battery when lowering loads.

Workday operation without recharging
With a 12.2 kWh battery, electric winch and energy recovery, the crane can perform approximately 140 typical lifts or operate for more than 10 hours under normal use before recharging via a standard 230 V socket.

Technical specifications

• Model: AHK 36e X
• Towing capacity: 3,500 kg
• Permissible total weight: 3,650 kg
• Max. payload: 1,500 kg (optional 2,400 kg)
• Max. extension length (crane mode): 34.00 m (optional 36.00 m)
• Jib extension stages: 4.9 / 8.0 / 11.1 m (optional 13.1 m)
• Jib load capacities: 1,500 / 800 / 500 / (250) kg
• Tilt angle range: 85°
• Slewing range: continuous
• Boom angle: 162°
• Hook speed: 100 m/min
• Crane outreach examples (crane mode): 250 kg → 21.1 m (21.4 m), 500 kg → 16.3 m, 800 kg → 11.9 m, 1,000 kg → 9.6 m, 2,000 kg → 4.8 m
• Platform outreach (PK 250-D): 250 kg → 15.7 m; 100 kg → 18.4 m
• Max. working height (platform mode): 32.2 m
• Drive: Petrol / 230 V with battery
• Winch: Electric 1.5 t winch with energy recovery
