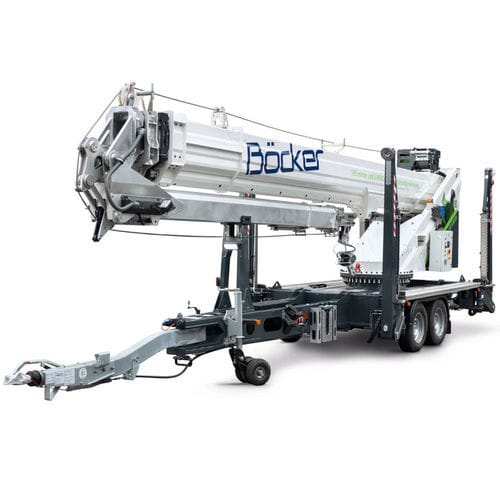

Trailer-mounted crane AHK 36

boomtelescopicfor construction

The AHK 36 is the most powerful trailer crane of its class. Thanks to its' sophisticated boom this crane reaches heights up to 36 m without any problems. Having a vehicle weight of only 3.5 t, this machine lifts loads up to 2.4 t. The ultra-modern Böcker mast technology provides the basis for these surpassing performance data. This Böcker technology combines classical aluminium components with a new high-strength steel which is lightweight and string at the same time. Therefore, the AHK 36 clearly outperforms all other comparable cranes. The version of the AHK 36 equipped with a petrol engine will work even quieter in future, with improved insulation reducing noise emissions by seven decibels compared to the predecessor model. The AHK 36 is mounted on a tandem chassis ensuring a safe driving behaviour and an optimal distribution of floor load. Another important innovation is the Fall Protection Mode. In this new operating mode, the trailer crane can now be used to protect people from falling when working at height, e.g. during repairs on the roof. A safety device is suspended from the load hook of the crane, which connects the person to the crane via a wire rope within a certain radius of action. Beside its strong performance the AHK 36 clearly stands out by its enormous versatility. The Multiflex outriggers can be set up in 256 different positions using auto-levelling and therefore guarantee maximum utilisation of the available space on site. The foldable swivelling outriggers ensure an optimal positioning of the machine in the direction of the load. Furthermore they can easily be swivelled around any barriers.
