Rack-and-pinion goods lift Super-Lift MX 2024

electricfor the construction industryfor construction

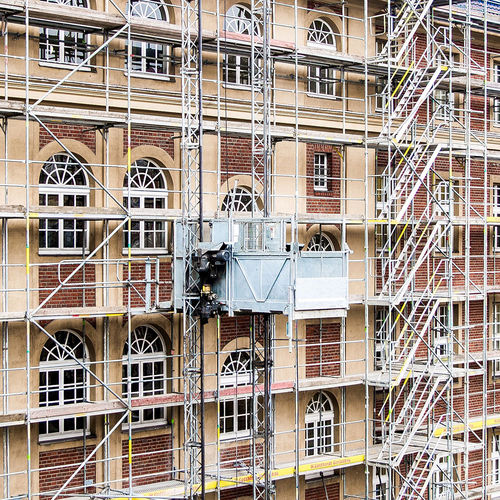

The strong dual-mast lift As a two-master, the Super-Lift MX 2024 offers more space, greater capacity and full variability. The construction hoist transports up to 2,000 kg of material in a wide variety of platform configurations. Alternatively, the transport platform can transport up to twelve people upwards. User-friendliness and robustness played a special role in the development of this transport platform. The users are mostly professional hirers whose requirements have a particular influence. Fast, safe assembly and robust operation are key features of this transport platform. The entire series impresses with the highly variable modular design of the platform. The basic unit with an area of 1.70 x 1.40 m, familiar from the single-master, can be flexibly extended for the two-master. The MX 2024 can be customized for specific projects by fitting additional platform modules. As a through-loading platform, the rack and pinion elevator can be extended to a length of 5.10 m, and as a transverse platform up to a width of 4.50 m. Variability through modular concept The possible variations of the Super-Lift MX 2024 are unprecedentedly modular. Whether access ramp, exit with swing gate or closing wall - the configuration of the platform walls is freely selectable. The configuration can even be changed on site with little effort. This means that a single elevator can cover a wide variety of construction situations. Maximum load capacity up to 2,000 kg The construction hoist has a load capacity that is up to 850 kg higher than comparable transport platforms. Depending on the configuration, it can transport up to 2,000 kg of material and components upwards.
