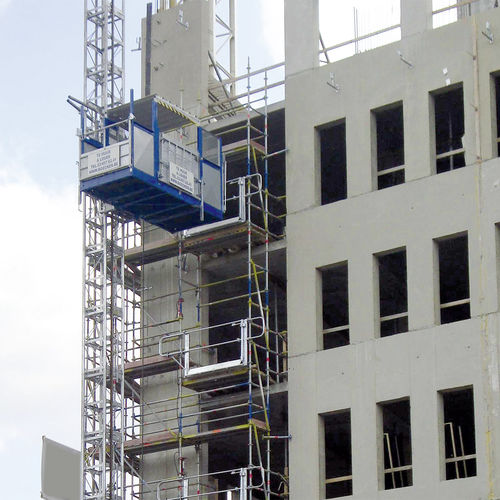

Rack-and-pinion goods lift Super-Lift LX

for constructionplatform

The Super-Lift LX of Böcker equally combines compact dimensions with surpassing performance and is attractively priced. Depending on the size of the cabin as well as on the model, this rack and pinion hoist has a load-bearing capacity of up to 4 t or offers sufficient space for up to 12 persons. Powerful engines ensure lifting speeds up to 24 m/min. Having a maximum lifting height of 200 m, the Super-Lift LX is well-prepared even for extremely challenging projects. For the design of this hoist, Böcker included well-proven technologies and combined them in a completely new model. Especially regarding control technology, the Super-Lift relies well-proven and sophisticated Böcker technologies to set the standard on the market. By using a PLC control, all limit switches of the hoist can constantly be monitored. Faults or operating errors are immediately recorded and can be read out from the display (optional). A complex wiring is not applicable either. Modulare platform configuration and compatible mast system The modular platform concept which can also be found among other Böcker construction hoists equally ensures a high degree of versatility. By attaching additional modules, the standard platform of the LX (1.40 x 1.70 m) can be enlarged up to a maximum size of 1.40 x 5.10 m. Doors, ramps and closing walls ensure an individual adaption of the base unit to each project. A convenient C-Door with extremely low exit height (approx. 60 cm) and an optional roof are equally available for the Super-Lift LX 2024. In addition to that all doors and ramps are characterised by convenient operation and a high degree of safety.
