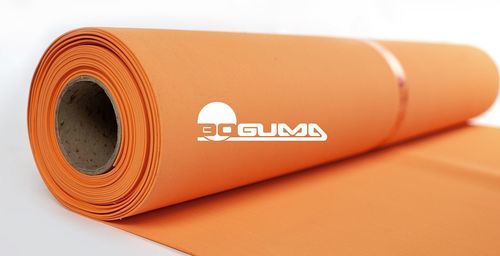

Custom-made insulation blanket EIP0-1,5x0

elastomerEPDM

Product description
Electrical insulating blanket certified to IEC 61112:2009 Class 0 (also categories A and Z). Rated for 1,000 V AC and 1,500 V DC. Made of vulcanized elastomer (SBR-NR-EPDM) with textile imprint on both faces in orange. Marking is performed by a precured lengthwise marking tape covering the entire roll for a permanent, unerasable identification. Supplied in rolls (widths 1000 mm or 1200 mm) with typical lengths of 10 m or 20 m; rolls allow cutting to shapes and sizes required by the end user. Minimum tensile strength 12 MPa and minimum elongation at break 300%. Custom cuts available on request.

Variants (table)
Id | Item number | Old number | Group | Class | Rubber | Pattern | Color | Length [m] | Width [mm] | Thickness [mm] | Thickness tolerance | Basis weight [kg/m2]
1169 | EP_60_06_H1_1_01-5 | EIP0-1,5x0 | EIP | 00 | SBR-NR-EPDM | H1 | orange | 10 | 1000 | 1,5 | (+0,4 mm/- 0,2 mm) | 1.6
1170 | EP_60_06_H1_1_01-5 | EIP0-1,5x0 | EIP | 00 | SBR-NR-EPDM | H1 | orange | 10 | 1200 | 1,5 | (+0,4 mm/- 0,2 mm) | 1.6
1315 | EP_60_06_H1_1_01-5 | EIP0-1,5x0 | EIP | 00 | SBR-NR-EPDM | H1 | orange | 20 | 1000 | 1,5 | (+0,4 mm/- 0,2 mm) | 1.6
1316 | EP_60_06_H1_1_01-5 | EIP0-1,5x0 | EIP | 00 | SBR-NR-EPDM | H1 | orange | 20 | 1200 | 1,5 | (+0,4 mm/- 0,2 mm) | 1.6

Characteristics / technical specifications

• Standard: IEC 61112:2009, Class 0 (categories A and Z)
• Rated operating voltage: 1,000 V AC / 1,500 V DC
• Material: vulcanized elastomer (SBR-NR-EPDM) with textile imprint on both faces, orange
• Thickness: 1.5 mm (tolerance +0.4 mm / -0.2 mm)
• Basis weight: 1.6 kg/m2
• Hardness: 60 ± 5 (Shore)
• Tensile strength: minimum 12 MPa
• Elongation at break: minimum 300%
• Resistance: resistant to acids and ozone
• Marking: precuring lengthwise marking tape covering the entire roll (durable, unerasable)
• Supply: rolls with standard widths 1000 mm or 1200 mm; typical lengths 10 m or 20 m; cuts to shape available on request
