EPDM insulation blanket EIP0-1,0x0

Description

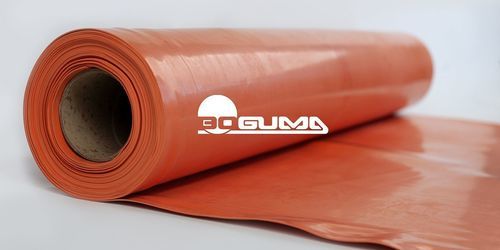

Electrical insulation blanket EIP0-1,0x0 is a flexible covering material made of EPDM elastomer for covering live or grounded conductors, suitable for indoor and outdoor applications. Manufactured with thickness 1.0 mm (tolerance +0.4 / -0.0) and available in widths 1000 mm and 1200 mm. Supplied in rolls of 10 m length. The blanket has a smooth surface on both sides and is marked along the full length with a class identification tape (class 0 – red tape).

Certifications and class
Certified to IEC 61112:2009 in electrical class 0 with a rated working voltage of 1000 V. Also certified in categories A and Z (resistant to acids and ozone).

Key performance

• Tensile strength: ≥ 16 MPa
• Tear resistance: ≥ 500%
• Hardness: 60 ± 5 (Shore)

Variants (table)
Id | Item number | Model | Group | Class | Rubber | Pattern | Color | Length [m] | Width [mm] | Thickness [mm] | Thickness description | Weight | Density
1359 | EP_60_11_H0_0_01-0 | EIP0-1,0x0 | EIP | 00 | SBR-NR-EPDM | H0 | salmon | 10 | 1000 | 1.0 | (+0.4 mm / -0.0 mm) | 1.4 | 1.4
1360 | EP_60_11_H0_0_01-0 | EIP0-1,0x0 | EIP | 00 | SBR-NR-EPDM | H0 | salmon | 10 | 1200 | 1.0 | (+0.4 mm / -0.0 mm) | 1.4 | 1.4

Features and usage

• Smooth surface on both sides
• Marked along full length for electrical class identification (class 0 – red tape)
• Designed for covering live or grounded conductors
• Suitable for indoor and outdoor use
• Delivered in rolls (standard length 10 m)

Technical specifications

• Model: EIP0-1,0x0
• Material: EPDM elastomer (variants list SBR-NR-EPDM composition)
• Electrical class: Class 0 (IEC 61112:2009)
• Working voltage: 1000 V
• Certification categories: A and Z (acid and ozone resistant)
• Thickness: 1.0 mm (tolerance +0.4 / -0.0 mm)
• Available widths: 1000 mm, 1200 mm
• Standard roll length: 10 m
• Hardness: 60 ± 5 (Shore)
• Tensile strength: ≥ 16 MPa
• Tear resistance: ≥ 500%
• Basis weight / mass: 1.4 (as presented)
• Density: 1.4
• Color: salmon
