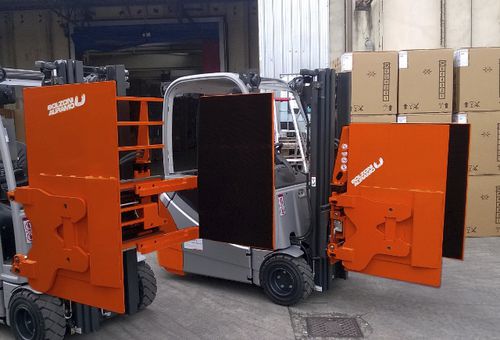

Carton lifting clamp KS-CD series
verticalhydraulic

carton lifting clamp
carton lifting clamp
carton lifting clamp
Add to favorites
Compare this product


Characteristics

Intended load
carton
Lifting type
vertical
Other characteristics
hydraulic
Load limit

800 kg
(1,763.7 lb)

Description

For handling of white goods and appliances in production sites, logistic centres and forwarding companies. • Used in the white goods industry. • Strong double T-profiles. • Aluminum arm pads with rubber lining. • Single oscillating pads. • Arms with rigid structure, for an uniform clamping force. • Load backrest, to avoid damage to the load. • Check valve and a pressure-relief valve with gauge. • Integral sideshift. • Excellent visibility. • Minimized weight, effective thickness and centre of gravity. Notes: • Two hydraulic functions. • E= arm thickness, including rubber. • T= 80 mm. arm thickness at the arm base, including rubber. • Arms welded directly to the guides. • Pressure gauge. Options: • Special opening ranges. • Other arm dimensions (max. L= 1370 and A= 1370 mm). • Pressure-relief valve with four pre-set positions. • Flow divider valve for synchronized arm movement
