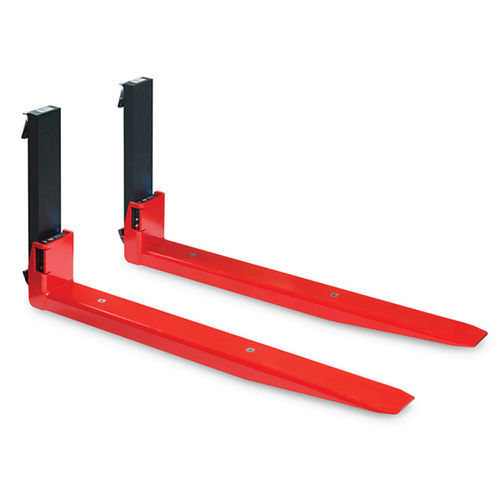

Forklift truck pallet fork iForks-32

Product description
All weighing components are integrated and concealed below and behind the fork shoe, giving the iForks-32 a slim profile. There are no external components on the fork shank, enabling simple fitting to fork positioners. The iForks-32 adds only marginal height compared with standard lift truck forks. RAVAS high technology product distributed by BOLZONI.

Key benefits

• Installation in approximately 5 minutes
• Completely wireless via Bluetooth—no cabling between forks and indicator
• Fork power supplied by compact Li‑ion battery packs mounted on the forks
• Digital calibration on board
• Load warnings for tip and side loading
• Easy integration with fork positioners
• Efficient power management for extended operation
• Tested for 1,000,000 cycles at 125% of capacity
• Automatic mast tilt (lean) compensation

Applications
Designed for forklift trucks where integrated wireless fork scales are required for on‑board weighing, load control and logistics operations. Suitable for standard forks and for use with compatible fork positioners in industrial and warehouse environments.

Documentation

• Product brochure: B-iFORKS-32-RAVAS_EN.pdf
• Service manual: ma-ravas-iforks-32-xt-en-rev.pdf
• Fork guide: BOLZONI_AURAMO-Fork_Guide_EN_Web.pdf
• Declaration of Conformity and final inspection

Technical specifications

• Model range: iForks-32
• Weighing components hidden below and behind fork shoe
• No external components on fork shank (facilitates integration with fork positioners)
• Wireless communication: Bluetooth
• Power: compact Li‑ion battery packs mounted on forks
• Digital calibration function
• Load warnings for tip and side loading
• Automatic mast tilt compensation
• Tested to 1,000,000 cycles at 125% of capacity
• Compatible with Bolzoni, Auramo and Meyer fork positioners
