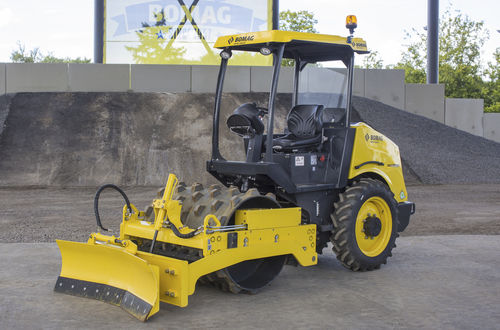

Vibrating road roller BW 124 DH-5

robustarticulatedsmart

Overview
The BW 124 DH-5 is a compact-class single-drum roller designed for small to medium construction sites. It offers manoeuvrability and efficient compaction performance for tasks such as road works, parking areas, trench backfilling and foundation preparation.

Fields of application
Suitable for compaction of non-cohesive soils (sand, gravel, rubble), weakly cohesive soils and hydraulically bound materials (D-series). PD variants are configured for strongly cohesive, high-moisture soils. H-series variants are optimised for trenches and high-gradeability applications.

Key features

• Smart engine management: Drive system compliant with Stage V / TIER4f; ECOMODE reduces fuel consumption and wear.
• Easy maintenance: Maintenance-free articulated joint and ground-level access to service points for short service times.
• Telematics: BOMAG TELEMATICS for remote fleet monitoring and uptime optimisation.
• Powerful drive: Standard dual-pump hydrostatic drive for high gradeability (up to 55%) and strong traction on cohesive soils.
• Efficient compaction: High-frequency exciter system for effective energy transfer; optional ECONOMIZER for additional savings.
• Safe transport and operation: Robust lashing points, excellent all-round visibility and 4-post ROPS/FOPS.

At a glance

• Emission stage: Stage V / TIER4f
• Operating weight: 3,300 kg
• Engine power: 34.0 kW
• Working width: 1,200 mm
• Gradeability: up to 55% (double pump technology)

Standards

• Hydrostatic travel and vibration drive
• Double pump system for travel drive
• 2 spring accumulator brakes
• Self-locking differential
• Hydrostatic articulated steering
• Contact scrapers
• Hour meter
• Charge control
• Parking brake
• Engine oil pressure indicator
• Engine temperature indicator
• Air cleaner contamination indicator
• Fuel level indicator
• Warning horn
• Transport lashing and lifting points front/rear
• Lockable anti-vandal dashboard protection
• Back-up alarm
• Emergency stop button
• ROPS/FOPS with safety belt (4-post)
• Working lights
• Seat contact switch
• Rear windscreen
• Battery disconnect switch

Options

• Dozer blade (+350 kg)
• Dozer blade pre-installation
• Dozer blade with tilting mechanism (+440 kg)
• Special paint
• Rotary beacon
• ECONOMIZER
• TELEMATICS (BOMAG TELEMATICS)
• Additional working lights
• Comfort package
• Smooth drum shell

Technical specifications

• Model: BW 124 DH-5
• Operating weight: 3,300 kg
• Engine power: 34.0 kW
• Working width: 1,200 mm
• Emission standard: Stage V / TIER4f
• Drive: Hydrostatic travel and vibration drive; double pump system for travel drive
• Exciter system: High-frequency exciter for powerful compaction; optional ECONOMIZER
• Gradeability: up to 55% (double pump drive)
• Fuel and wear reduction: ECOMODE (standard)
• Safety: 4-post ROPS/FOPS, seat contact switch, emergency stop and backup alarm
• Serviceability: Maintenance-free articulated joint; easy ground-level access to service points
