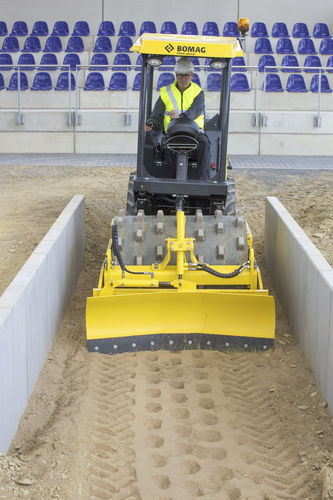

Single-cylinder road roller BW 124 PDH-5

duplexvibratingrobust

Overview
Compact class single‑drum roller designed for light to medium compaction tasks on small and medium construction sites. BW 124 PDH-5 provides maneuverability and efficient compaction to ensure a load‑bearing subgrade.

Applications
For light and medium compaction in road construction, parking areas, trenches and backfills. DH versions: non‑cohesive soils (sand, gravel, crushed stone), weakly cohesive soils and hydraulically bound materials. PDH versions: primarily for highly cohesive, high‑moisture soils. H versions: high climbability and higher torque drives for trench and steep‑slope work.

Highlights / Features

• Intelligent engine — standard ECOMODE reduces fuel consumption by up to 30%; complies with TIER4f / Stage V.
• Easy maintenance — maintenance‑free articulation, rapid access to components and long service intervals.
• BOMAG TELEMATICS — fleet management for machine monitoring, deployment optimization and maximized uptime.
• Powerful drive — standard duplex pump drive, climbability up to 55% and strong traction on cohesive ground.
• Efficient compaction — high‑frequency exciter system; optional ECONOMIZER for additional savings.
• Safe transport — robust lashing points front and rear for secure loading.
• Operator safety & comfort — good all‑round visibility, 4‑post ROPS/FOPS and ergonomic operator station.

Standard equipment

• Hydrostatic travel and vibration drive
• Duplex pump system for travel drive
• 2 spring‑applied parking brakes
• Self‑locking differential
• Hydrostatic articulated steering
• Contact scraper
• Hour meter, battery charge indicator, parking brake indicator, engine oil pressure, engine temperature, air filter clogging indicator, fuel gauge
• Horn
• Transport lashing and lifting eyes front/rear
• Lockable instrument cover
• Reverse alarm
• Emergency stop
• ROPS/FOPS with seat belt
• Work lights
• Seat switch
• Rear window
• Battery master switch

Optional equipment

• Dozer blade (+350 kg / 772 lb)
• Dozer blade preparation
• Tilting dozer blade (+440 kg / 970 lb)
• Special paint
• Beacon
• ECONOMIZER
• TELEMATIC
• Additional work lights
• Comfort package
• Smooth drum cover

Technical specifications

• Commercial designation: BW 124 PDH-5
• Emission stage: Stage V / TIER4f
• Operating weight: 3,390 kg
• Power: 34.0 kW
• Working width: 1,200 mm
• Climbability: up to 55% (duplex pump technology)
• Fuel saving (ECOMODE): up to 30%
• Drive: hydrostatic travel and vibration drive, duplex pump system
• Compaction: high‑frequency exciter system (optional ECONOMIZER)
• Safety & comfort: 4‑post ROPS/FOPS, good visibility, ergonomic cockpit

Remarks
Further information available on request. Specifications subject to change. Illustrations may show optional equipment.
