Mixed waste compactor BC 573 RB-3

mobilehydraulicfor landfills

Overview

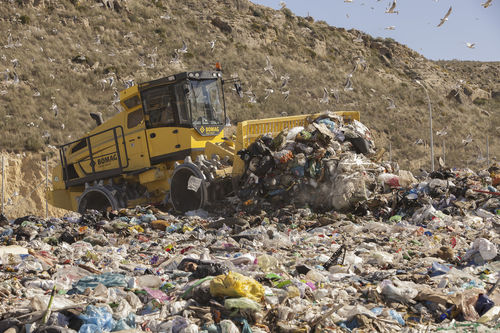

The BOMAG BC 573 RB-3 refuse compactor is engineered for distribution and compaction of landfill waste. The revised machine concept combines a quad‑pump drive, hydraulically actuated engine hood and high air intake to maximise machine availability and service access while ensuring effective compaction on mixed waste sites.

Applications
Distribution and compaction of municipal, industrial and special waste at landfill sites. Available in rake/blade configuration RB or shovel configuration RS. Suitable for primary spreading, levelling and final compaction operations.

Key benefits / Features

• Traction and uniform compaction — oscillating articulated joint with +/-15° maintains constant ground contact for homogeneous compaction and high traction.
• Wheel cleaning system — adjustable scrapers and cable cutters in front of and behind each wheel prevent material build-up and reduce daily cleaning time.
• High availability — high air intake combined with reversible airflow minimizes clogging and cleaning needs.
• Serviceability — one-piece engine hood and left/right platforms provide straightforward access to engine and components.
• Durable compaction wheels — polygonal compaction wheels and premium wear-resistant options improve homogenisation and traction; premium wheels available with wear warranty.
• Operator environment — ROPS/FOPS cab with noise insulation, automatic heating/air conditioning, vibration-insulated suspension and ergonomically arranged controls including joystick steering and display instruments.
• Fleet management ready — telematics option for machine monitoring and uptime optimisation.

Standards / Included

• Electronic engine management
• Electronic monitoring module with engine shut-down
• Dry air filter; multi fuel filter system; fuel bleeding pump
• Four wheel drive with quad pump drive (BC 573 RB-3)
• Wear control in hydraulic circuit
• Oscillating articulated joint between front and rear frames
• Adjustable scrapers front and rear of each wheel; wire deflector and inner wheel drive protection
• ROPS/FOPS cabin; noise insulated, automatic heating and air conditioning; vibration-insulated cabin suspension
• Air suspended seat; joystick steering; display instruments
• Lockable cabin and engine hood; 24 V electrics; generator 80 A; battery disconnect switch
• Working lights (4 front / 2 rear); audible backup alarm; rearview camera; reversible fan

Options

• Polygonal compaction wheels with replaceable caps
• Premium compaction wheels with highly wear-resistant teeth
• Central lubrication system
• Semi-U blade 3,590 mm or blade 3,600 mm
• CD-radio; pre-start cabin heating; climatronic
• Rotary beacon; fire extinguisher; special painting
• Electrical anti-theft system with numerical code; protective cabin grille
• Telematic Power remote monitoring; LED working headlights; tachograph

Technical specifications

• Model: BC 573 RB-3
• Emission stage: Stage IIIa / TIER3
• Operating weight: 28,000 kg
• Engine output: 227.0 kW
• Working width (blade): 3,600 mm
• Drive: Four wheel drive, quad pump drive
