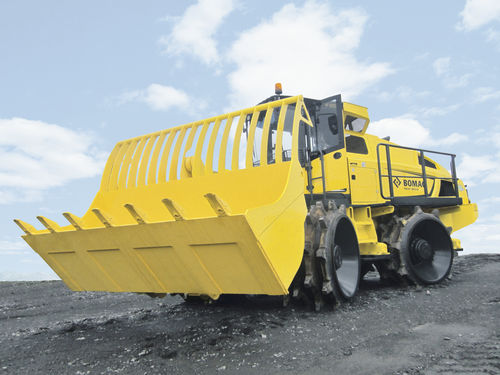

Mixed waste compactor BC 473 RS-3

mobilefor landfillssingle-blade

Overview
BOMAG refuse compactor designed for the toughest landfill sites. The revised machine concept integrates intelligent features to increase productivity and simplify operation and maintenance, including a hydraulically actuated one-piece engine hood and a high air intake with reversible airflow.

Fields of application
Distribution and compaction of all landfill waste materials, including industrial, domestic and special waste types. Available in blade version RB or shovel version RS.

Key features

• Intelligent fleet management (BOMAG Fleet Management) for optimized operation and increased uptime
• Scraper bars in front of and behind each wheel to keep tools and wheels clean
• Oscillating articulated joint (±15°) between front and rear frames for constant ground contact, traction and uniform compaction
• Hydraulically actuated one-piece engine hood and easily accessible service points via two platforms for simplified servicing
• High air intake located at the highest point of the machine and reversible air flow to reduce cleaning needs
• Special BOMAG wheel design for improved homogenisation, compaction and traction (premium wheels with wear guarantee available)
• Four-wheel drive with hydraulic differential locks front and rear (twin pump drive)
• ROPS/FOPS cabin, noise insulated with automatic heating and air conditioning, vibration-insulated cab suspension and air-suspended seat
• Joystick steering, display instruments and control unit for dozer blade and travel direction beside the driver’s seat
• Rearview camera, working lights, towing eyes front/rear and a range of practical service and safety features

Standards

• Electronic engine management
• Electronic monitoring module with engine shut-down
• Dry air filter
• Multi fuel filter system
• Fuel bleeding pump
• Four-wheel drive, hydraulic differential lock front and rear (twin pump drive)
• Wear control in hydraulic circuit
• Oscillating articulated joint between front and rear frames
• Adjustable scrapers in front of and behind each wheel
• All drive components protected by closed frame pan
• Wire deflector and drive protection on inner side of wheels
• ROPS/FOPS
• Noise insulated cab with automatic heating and air conditioning
• Vibration insulated cab suspension
• Safety glass cabin windows
• Sun visor
• Hinged window left
• Windscreen wiper/washer front
• Outside rear mirrors
• Activated carbon filter
• High air intake
• Air suspended seat
• Control unit for dozer blade and travel direction beside the driver’s seat
• Joystick steering
• Display instruments
• Lockable cabin and engine hood
• 24 V electrics
• Generator 150 A
• Battery disconnecting switch
• Working lights, 4 front / 2 rear
• Audible backup alarm
• Warning horn
• Access steps right / left
• Towing eyes front / rear
• Heated rear screens
• Reversible fan
• Working platform
• Rearview camera

Options

• Polygonal compaction wheels, teeth with replaceable caps
• Bucket (3200 mm)
• Premium compaction wheels with highly wear resistant teeth
• Central lubrication system
• CD-Radio
• Pre-start cabin heating
• Rotary beacon
• Fire extinguisher
• Special painting
• Electrical anti-theft system with numerical code
• Tool kit
• Protective grille for cabin
• Climatronic
• Tachograph
• Cold start device
• Protective ventilation system (pre-installation)
• Bucket tooth system
• LED working head lights
• TELEMATIC POWER

Technical specifications

• Commercial designation: BC 473 RS-3
• Brand: BOMAG
• Emission stage: Stage IIIa / TIER3
• Operating weight: 25,400 kg
• Engine power: 227.0 kW
• Working width: 3,198 mm
• Available versions: RB (blade) and RS (shovel)
• Key functional technologies: oscillating articulated joint, high air intake with reversible airflow, scraper bars, BOMAG wheel design
