Mixed waste compactor BC 473 RB-5

for hazardous wastescrapmobile

Overview

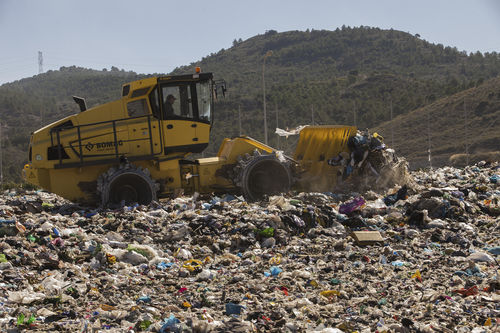

BOMAG landfill compactor designed for distribution and compaction of landfill waste under demanding site conditions. The revised machine concept incorporates a hydraulically actuated engine hood and high air intake to improve serviceability and uptime.

Applications

• Distribution and compaction of municipal, industrial and special wastes.
• Suitable for primary compaction and long-term landfill operation.
• Available in blade version (RB) or shovel version (RS).

Key product highlights

• Fleet management ready — integrated telematics for operational monitoring and uptime optimisation.
• Constant ground contact — oscillating articulated joint (±15°) for uniform compaction and traction.
• Wheel cleaning system — scrapers and cable cutters in front of and behind each wheel prevent material winding on axles.
• Easy maintenance — one-piece engine hood and accessible platforms for service points.
• Improved availability — high air intake and reversible airflow reduce cleaning intervals.
• Wheel options — BOMAG wheel designs for homogenisation and traction; premium wheels with wear guarantee available.

Standards (selected)

• Electronic engine management
• Electronic monitoring module with engine shut-down
• Dry air filter
• Multi fuel filter system and fuel bleeding pump
• Four wheel drive with hydraulic differential locks (Twin pump or Quad pump depending on model)
• Wear control in hydraulic circuit
• Oscillating articulated joint between front and rear frames
• Adjustable scrapers in front of and behind each wheel
• Closed frame pan protecting drive components
• Wire deflector and inner wheel drive protection
• ROPS/FOPS and safety glass
• Noise insulated, climate-controlled cabin with vibration suspension
• High air intake and reversible fan
• Central lubrication system and air suspended seat
• Joystick steering and display instruments
• Lockable cabin/engine hood, 24 V electrics, generator 150 A, battery disconnect
• Working lights (4 front / 2 rear), audible backup alarm, rearview camera

Options (selected)

• Polygonal compaction wheels with replaceable caps
• 3600 mm blade and Semi-U-Blade 3590 mm
• Premium compaction wheels with high wear resistance
• CD-Radio, pre-start cabin heating, rotary beacon, fire extinguisher
• Special painting and electrical anti-theft system with numerical code
• Protective ventilation pre-installation, cabin protection grille, Climatronic
• Tachograph, cold start devices (115V / 230V), LED working headlights
• Rear protective grille, TELEMATIC POWER

Notes
Further data on request. All data subject to change. Illustrations may contain optional features.

Technical specifications

• Model: BC 473 RB-5
• Brand: BOMAG
• Emission stage: Stage V / TIER4f
• Operating weight: 26,000 kg
• Engine power: 210.0 kW
• Working width: 3,600 mm
• Blade / shovel variants: RB (blade) and RS (shovel)
• Drive: four wheel drive (Twin pump or Quad pump depending on model)
• Key technologies: oscillating articulated joint, high air intake, reversible fan, central lubrication, premium compaction wheels (option)
