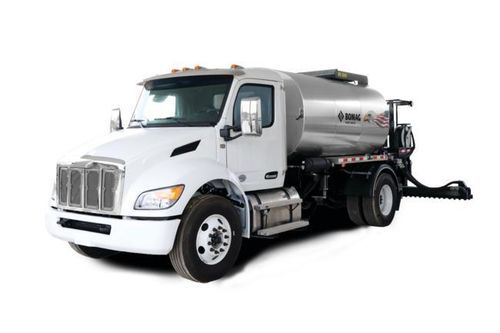

Automatic asphalt distributor BD 2000

Overview
The BD 2000 features a 2000 gallon asphalt tank system suitable for various types of emulsion and liquid asphalt binder. In-tank baffles help to control the liquid from shifting during transport. The tank is protected by an aluminum sheet cover and has 4 inch thick, high-density insulation to efficiently maintain oil temperature. A bolt-on 17.5 inch diameter cover provides convenient access to the back of the tank and the tank is surrounded by a guard rail for increased safety.

Fields of Application
Asphalt distributors spray a binding layer on top of existing asphalt or Portland cement prior to an overlay of a new pavement layer.

Highlights

• Every tank delivered with calibration report: Every BOMAG Distributor and Combination Spreader is delivered with a calibration report, ensuring the quality and reliability of each machine.
• Telescopic spray bars: With the BOMAG Combination Spreaders and the BD 2000, you can adjust the working width of the sprayers to fit any distribution job.

Product values
Weight: 14968 kg
Working width (min-max): 0.0 Unknown

Standards

• Aluminum-protected telescopic spray bar
• 1000 gallon asphalt tank
• Tank-access manhole
• Floating tank gauge
• 4 inch tank heat insulation
• Automatically controlled diesel oil burner with electric ignition
• 21 gallon diesel fuel tank
• Binder pump with max. flow rate of 20 cubic yards
• Asphalt circuit system
• Aluminum hand lance
• Cleaning system
• Computer-controlled asphalt application rate
• Control joystick with armrest
• 7 inch ergonomic screen with articulated arm
• Hydraulic pump
• Hydraulic valves to supply the different motors
• Hydraulic tank with filtering device
• Pneumatic circuit connecting on the supplying cylinder of the truck
• Sub-frame camber allowing to receive the tank, asphalt system, and spray bar

Options

• Overnight heating system
• Washdown system
• Working LED lights

Technical specifications

• Tank system: 2000 gallon asphalt tank system (suitable for emulsion and liquid asphalt binder)
• In-tank baffles to control liquid shifting during transport
• Aluminum sheet cover protecting the tank
• 4 inch thick, high-density tank insulation
• Bolt-on 17.5 inch diameter tank cover for rear access
• Guard rail surrounding tank for increased safety
• Tank-access manhole
• Floating tank gauge
• Automatically controlled diesel oil burner with electric ignition
• 21 gallon diesel fuel tank
• Binder pump with max. flow rate of 20 cubic yards
• Asphalt circuit system and cleaning system
• Aluminum-protected telescopic spray bar (adjustable working width)
• Aluminum hand lance
• Computer-controlled asphalt application rate
• Control joystick with armrest and 7 inch ergonomic screen with articulated arm
• Hydraulic pump, hydraulic valves and hydraulic tank with filtering device
• Pneumatic circuit connecting on the supplying cylinder of the truck
• Sub-frame camber to receive tank, asphalt system and spray bar
• Note: Further data on request. Illustrations may contain optional features.
