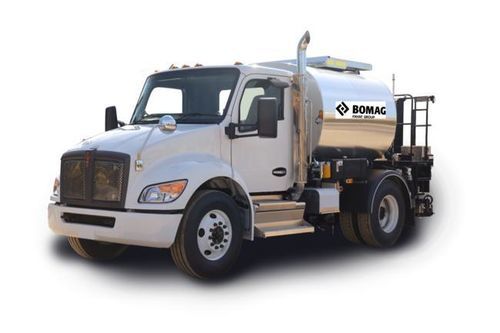

Automatic asphalt distributor BD 1000

Overview
The BD 1000 asphalt distributor is built around a 1000-gallon tank system designed for emulsion and liquid asphalt binders. In‑tank baffles limit liquid movement during transport. The tank features an aluminum sheet cover and 4‑inch high‑density insulation to maintain oil temperature efficiently. A surrounding guard rail and a bolt‑on 17.5‑inch diameter access cover ensure safe, convenient service access.

Fields of Application
Used to spray a binding layer on existing asphalt or Portland cement before applying a new pavement overlay. The BD 1000 is suitable for road maintenance and resurfacing operations where a 1000‑gallon capacity matches project requirements.

Quality / Tank Calibration
Each BD tank is supplied with a calibration report to verify capacity and ensure traceable quality for fleet management and procurement records.

Standards

• Horizontal folding spray bar
• 1000 gallon asphalt tank
• Tank-access manhole
• Floating tank gauge
• 4 inch tank heat insulation
• Automatically controlled diesel oil burner with electric ignition
• 21 gallon diesel fuel tank
• Binder pump with max. flow rate of 20 cubic yards
• Asphalt circuit system
• Aluminum hand lance
• Cleaning system
• Computer-controlled asphalt application rate
• Control joystick with armrest
• 7 inch ergonomic screen with articulated arm
• Hydraulic pump
• Hydraulic valves to supply the different motors
• Hydraulic tank with filtering device
• Pneumatic circuit connecting on the supplying cylinder of the truck
• Sub-frame camber to receive the tank, asphalt system, and spray bar

Technical specifications

• Model: BD 1000
• Tank capacity: 1000 gallons
• Weight: 11,793 kg
• Tank insulation: 4 inch thick, high-density
• Tank cover: aluminum sheet cover; bolt-on 17.5 inch diameter access
• Diesel fuel tank: 21 gallons
• Binder pump: max. flow rate of 20 cubic yards
• Spray bar: horizontal folding spray bar
• Controls: computer-controlled asphalt application rate; control joystick with armrest; 7 inch ergonomic screen with articulated arm
• Hydraulics: hydraulic pump, hydraulic valves, hydraulic tank with filtering device
• Safety/features: in-tank baffles; guard rail; tank-access manhole; floating tank gauge
